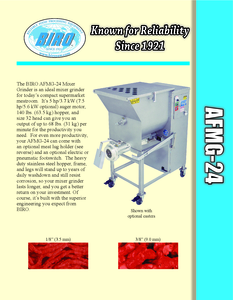

5 HP Standard Biro Auto Feed Meat Grinder

Be the first to rate 5 HP Standard Biro Auto Feed Meat Grinder

Item:

Model: MODEL AFMG24

UPC CODE
#N/A
WARRANTY
1 Year Parts and Labor
CERTIFICATIONS
NSF / UL / USDA
COUNTRY OF ORIGIN
USA
GROSS WEIGHT
5669 LBS
GROSS DIMENSIONS
47 x 35 x 61 IN
PRODUCT OVERVIEW
Only Available in Canada.
FINISH: Stainless steel hopper, frame lid, and paddle. Tinned bowl, ring, and auger
MOTORS: Standard: 5 HP, 208V, 60 Hz, 3 Phase | Optional (Extra cost): 7 1/2 HP, 208V, 60 Hz, 3 Phase / 7 1/2 HP, 220V/380V, 50 Hz, 3 Phase / 5 HP, 220V, 50 Hz, 3 Phase / 5 HP, 220V, 60 Hz, 1 Phase
DRIVE SYSTEMS: Tandem single reduction of oil bath speed reducers with heavy-duty mechanical clutch
BOWL TYPE: Size 32, uses size 32 plate and knives
HOPPER CAPACITY: Up to 140 lbs.
OUTPUT CAPACITY: Up to 68 lbs. / minute
STANDARD CAPACITY: Splash guard, ring wrench, 8″™ cord, and plug on 3 phase only, no inlet hopper (solid tub), stainless steel 2nd grind paddle with hook, ring wrench, receptacle for pneumatic footswitch, operating and safety manual
OPTIONS: Size 32 plate and knife, pneumatic or electric footswitch, stainless steel bowl, ring, and auger (enterprise or unger), adjustable legs and casters with preventz additive, 7-1/2hp motor, meat lug holder, right or left feed inlet with connections for tandem systems
DIMENSIONS (DWH): 40 1/2″ x 21 3/4″ x 59 1/4″
