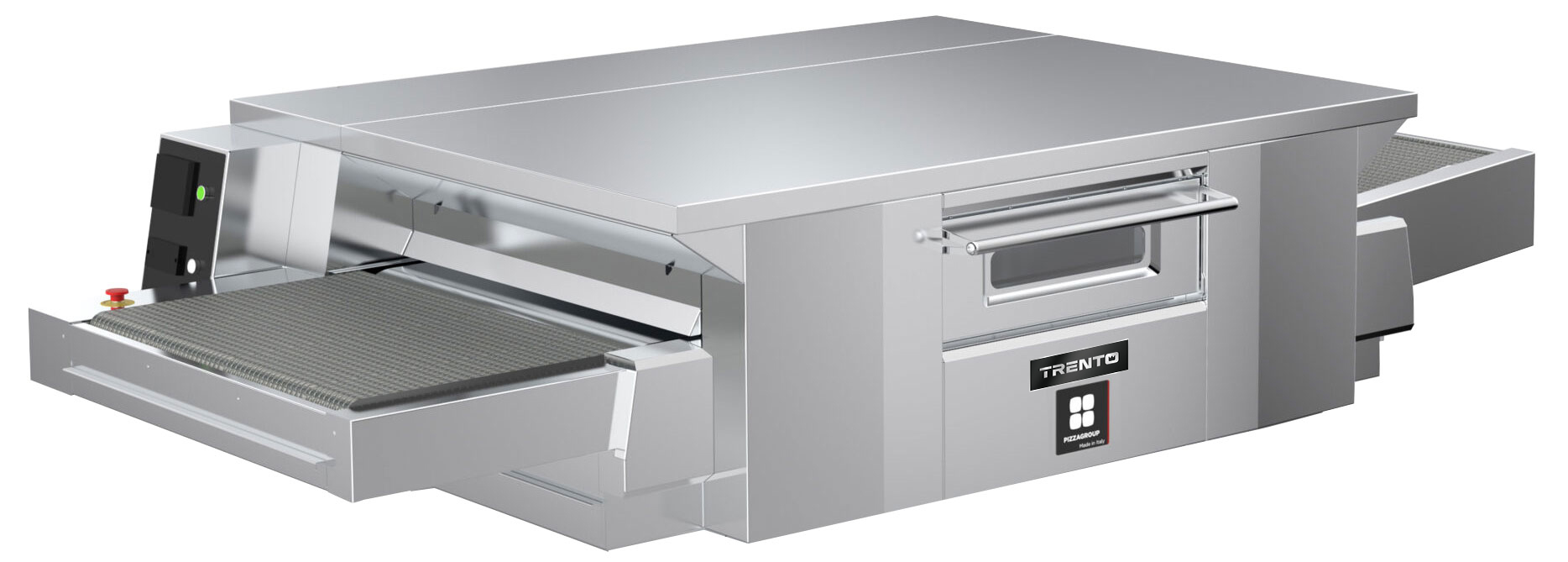

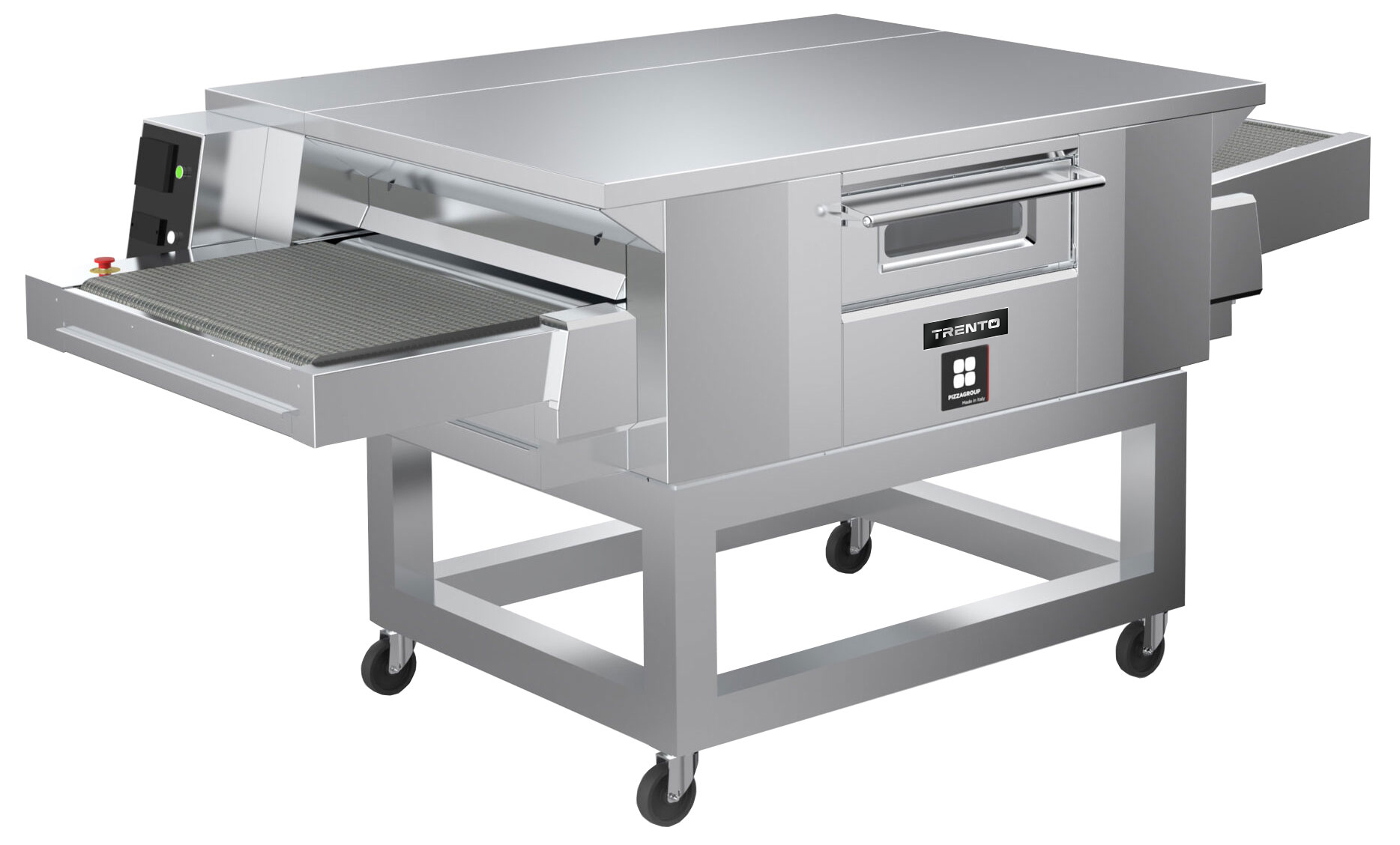

          Pizzagroup Dragon High Productivity Static Conveyor Pizza Oven with 24″ Wide Belt | Trento – 208 V, 3 Ph, 28 kW

          ITEM #: 47575

          MODEL: PE-IT-0024-D-RL

          Product Highlights


          • Refractory Stone cooking surface

          • 3-zone

          • Dual rotation of the Belt

          • Insulated center double glass door

          • Special mesh in-feed and out-feed conveyor belt

          • Detachable control panel

          • All Stainless Steel construction

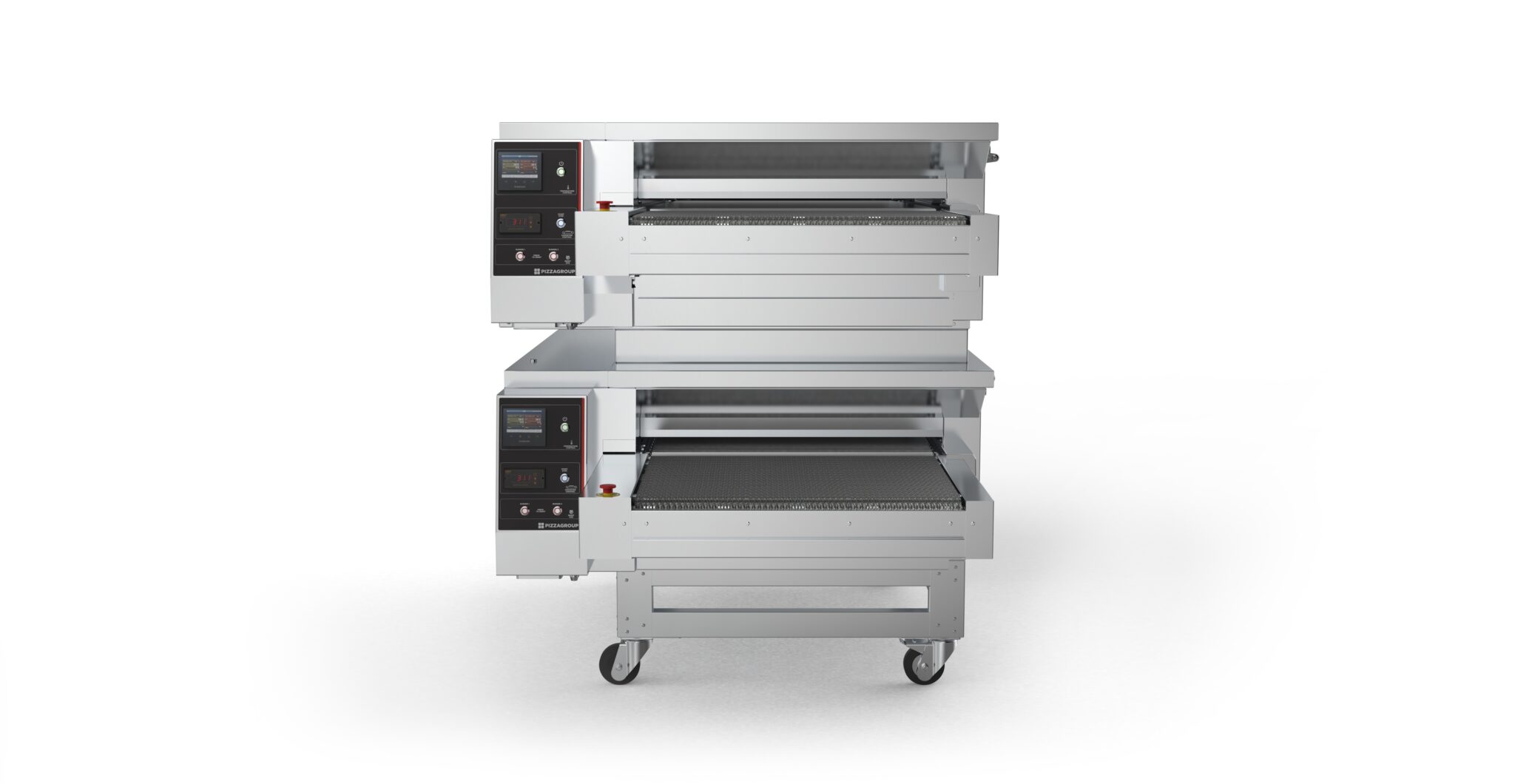

          • Stackable Design

          • American made (components installed: electrical device, electronic and motor)

          • Easy to clean

          • 4.0 ready (possibility to control the ovens by saving all the production statistic)


          Stand sold separately - item 47576
          • Gross Weight1697.55
          • Gross Dimensions76.3 x 57.8 x 42.5
          • UPC Code690207475758
          • Price LabelPC
          • Type of PlugBare Wire
          • Country of OriginITALY
          • CertificationQPS
          • Warranty1 Year Labor; 5 Year Parts Warranty

          Product Overview

          Dragon is the maximum expression of Italian quality and design. The oven is made from stainless steel, including the internal structures, which guarantees long lasting beauty and strength. Ideal for semi-industrial production output, thanks to our ADPV System, it has been engineered to deliver perfect control over pizza baking parameters. It is easy to adjust and energy efficient. The result is continuous production of consistently baked pizza, with all the flavor and distinctive marking of the best hearth baked crust combined with the labor savings and speed of a refractory stone conveyor.

          GENERAL FEATURES:

          ADPV System: The right amount of power, always at the right time. Dragon continuously senses your level of productivity and automatically sets the correct amount of power needed to guarantee the perfect cooking temperature. Dragon also helps to save energy when it senses it is in low productivity and automatically knows when it's time to switch into idle mode

          3-zone: Possibility to set 2 different temperatures on the  top, for perfect results also with products requiring different temperatures at the start and finish

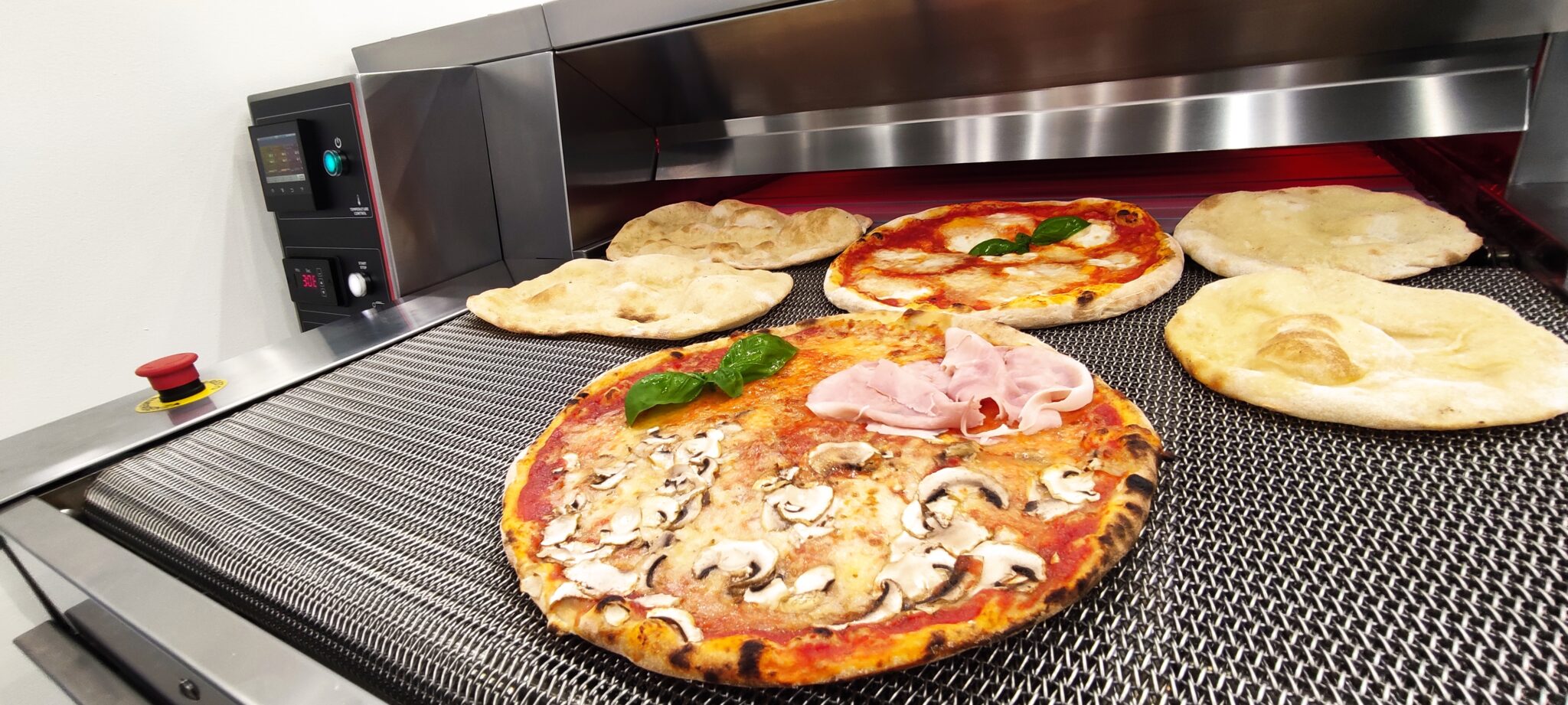

          Refractory stone cooking surface: More crispy and long lasting results. Bake any product directly on the stone without the need to use trays or pans

          Dual rotation of  the belt: Dragon can easily be adjusted to allow loading and unloading according to your needs

          840 °F (450 °C) max temperature: Perfect for any type of dough - even high hydration products requiring a very short cook time, like Napoli style pizza or even the pinza

          Insulated center double glass door: Easily insert a pizza slice or sandwich and check the cooking chamber at any time

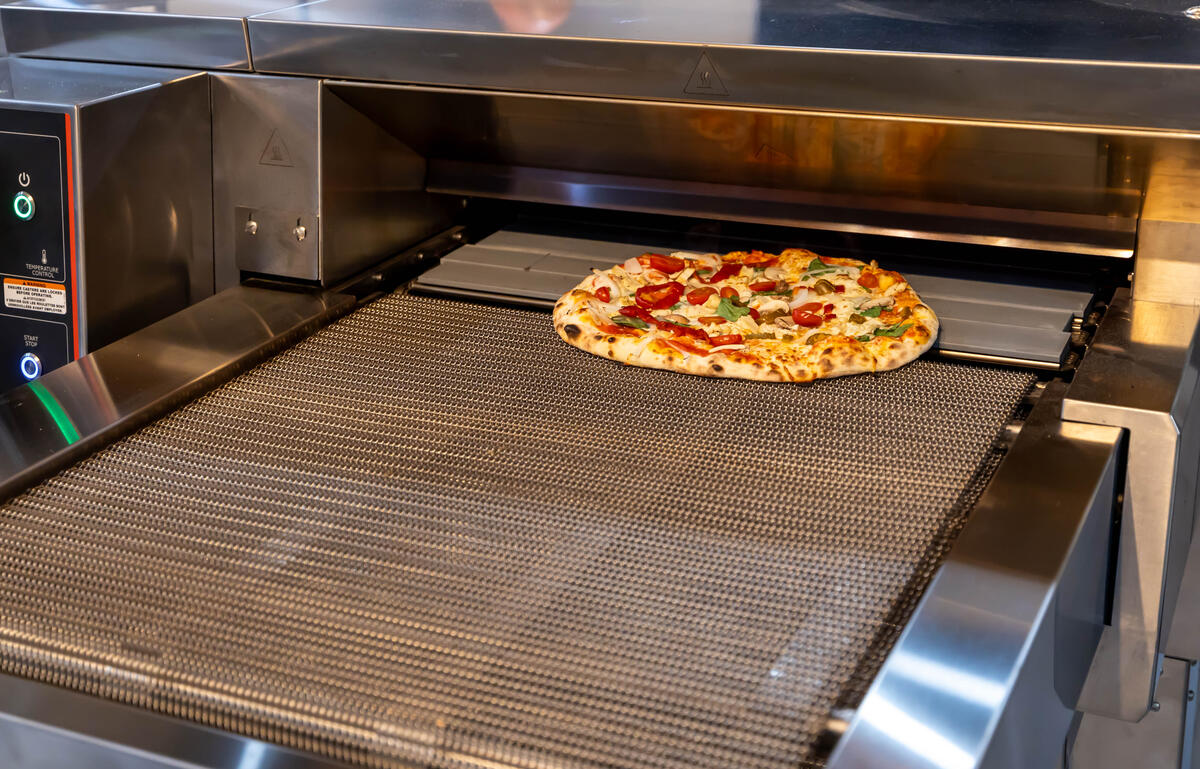

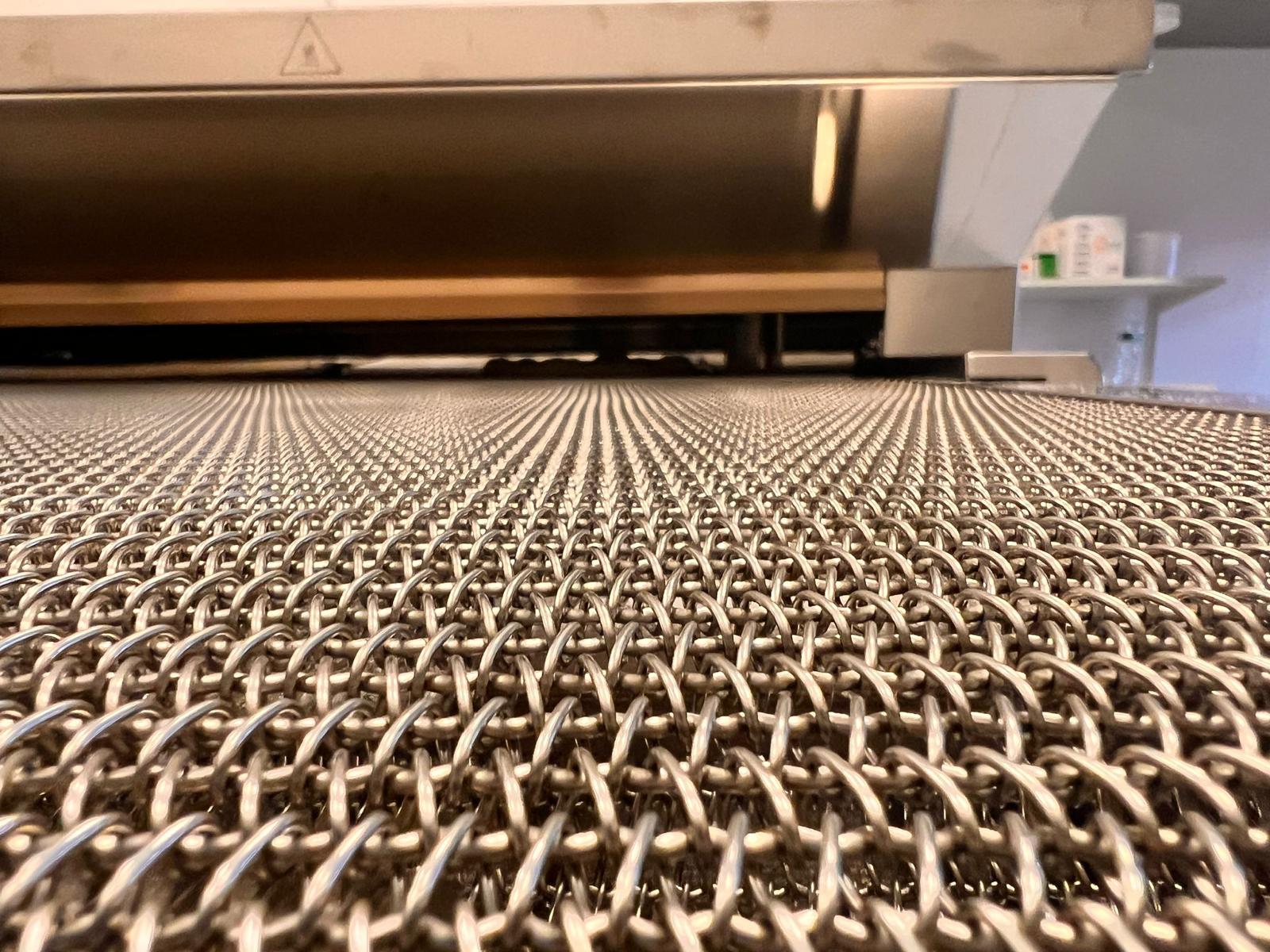

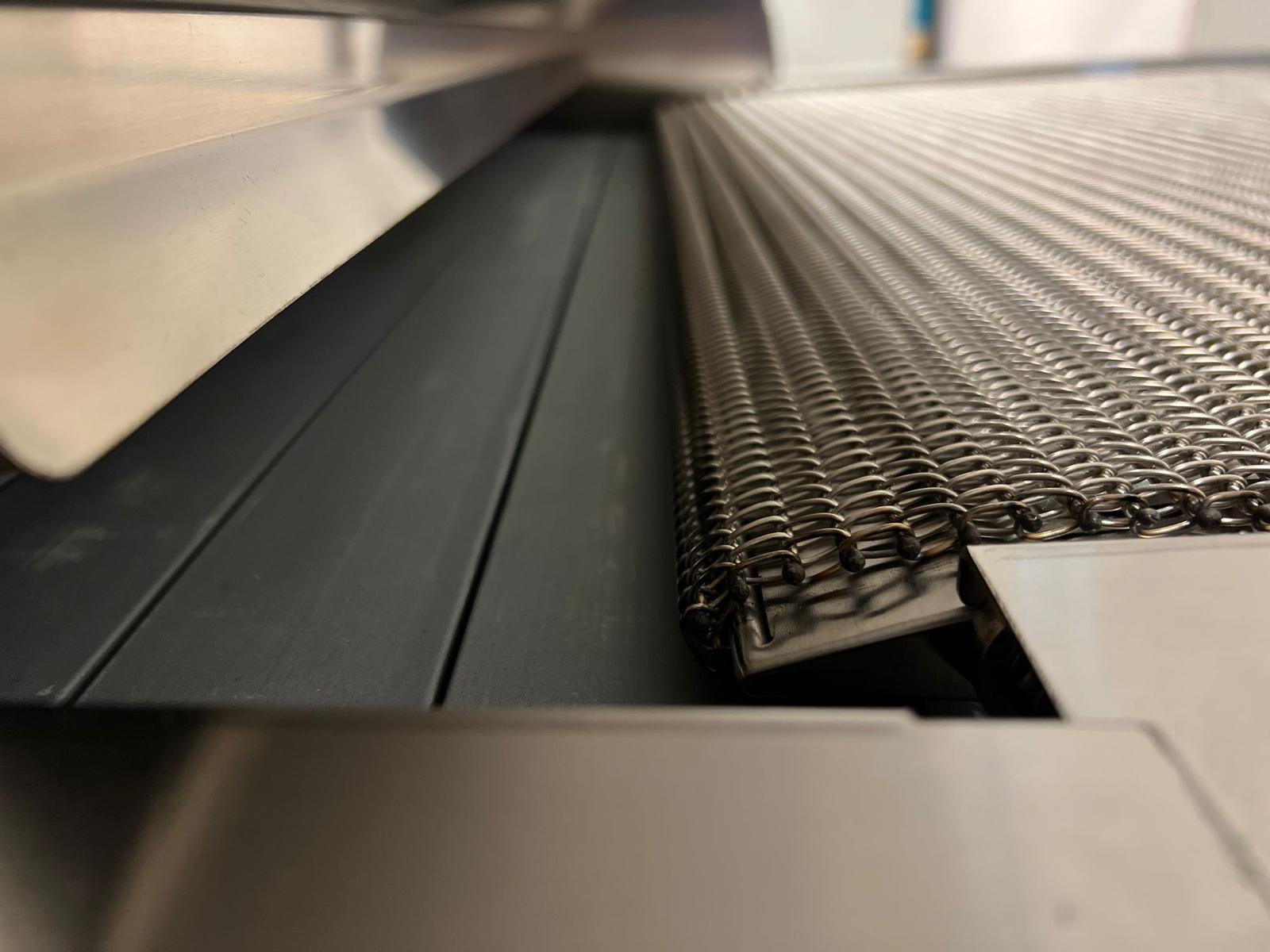

          Special mesh infeed and outfeed conveyor belt: Easily interchangeable and adjustable

          Detachable control panel: Can be positioned on any side of the Dragon, left, right, top or even on the wall, according to your needs



          Pizzagroup Dragon High Productivity Static Conveyor Pizza Oven with 24″ Wide Belt | Trento – 208 V, 3 Ph, 28 kW

          ITEM #: 47575

          MODEL: PE-IT-0024-D-RL

          Product Highlights


          • Refractory Stone cooking surface

          • 3-zone

          • Dual rotation of the Belt

          • Insulated center double glass door

          • Special mesh in-feed and out-feed conveyor belt

          • Detachable control panel

          • All Stainless Steel construction

          • Stackable Design

          • American made (components installed: electrical device, electronic and motor)

          • Easy to clean

          • 4.0 ready (possibility to control the ovens by saving all the production statistic)


          Stand sold separately - item 47576

          Product Overview

          Dragon is the maximum expression of Italian quality and design. The oven is made from stainless steel, including the internal structures, which guarantees long lasting beauty and strength. Ideal for semi-industrial production output, thanks to our ADPV System, it has been engineered to deliver perfect control over pizza baking parameters. It is easy to adjust and energy efficient. The result is continuous production of consistently baked pizza, with all the flavor and distinctive marking of the best hearth baked crust combined with the labor savings and speed of a refractory stone conveyor.

          GENERAL FEATURES:

          ADPV System: The right amount of power, always at the right time. Dragon continuously senses your level of productivity and automatically sets the correct amount of power needed to guarantee the perfect cooking temperature. Dragon also helps to save energy when it senses it is in low productivity and automatically knows when it's time to switch into idle mode

          3-zone: Possibility to set 2 different temperatures on the  top, for perfect results also with products requiring different temperatures at the start and finish

          Refractory stone cooking surface: More crispy and long lasting results. Bake any product directly on the stone without the need to use trays or pans

          Dual rotation of  the belt: Dragon can easily be adjusted to allow loading and unloading according to your needs

          840 °F (450 °C) max temperature: Perfect for any type of dough - even high hydration products requiring a very short cook time, like Napoli style pizza or even the pinza

          Insulated center double glass door: Easily insert a pizza slice or sandwich and check the cooking chamber at any time

          Special mesh infeed and outfeed conveyor belt: Easily interchangeable and adjustable

          Detachable control panel: Can be positioned on any side of the Dragon, left, right, top or even on the wall, according to your needs


          • Gross Weight1697.55
          • Gross Dimensions76.3 x 57.8 x 42.5
          • UPC Code690207475758
          • Price LabelPC
          • Type of PlugBare Wire
          • Country of OriginITALY
          • CertificationQPS
          • Warranty1 Year Labor; 5 Year Parts Warranty

          Technical Specifications

          ITEM: 47575
          ELECTRICAL: 208V / 60Hz / 3Ph
          CURRENT DRAW: 85A
          SUPPLY: 28kW
          BREAKERS: 100A
          CHAMBER DIMENSIONS (LWH): 53.9" x 24" x 2.3" / 137 x 61 x 6 cm
          NET DIMENSIONS (LWH): 104.7" x 47.2" x 23.6" | 266 x 120 x 60 cm
          HEIGHT WITH STAND: 51.1" (130 cm) for single deck
          NET WEIGHT: 1344.80 lbs / 610 kg.
          PACKAGING DIMENSIONS (LWH): 76.3" x 57.8" x 42.5" / 194 x 147 x 108 cm
          PACKAGING WEIGHT: 1697.55 lbs. / 770 kg.

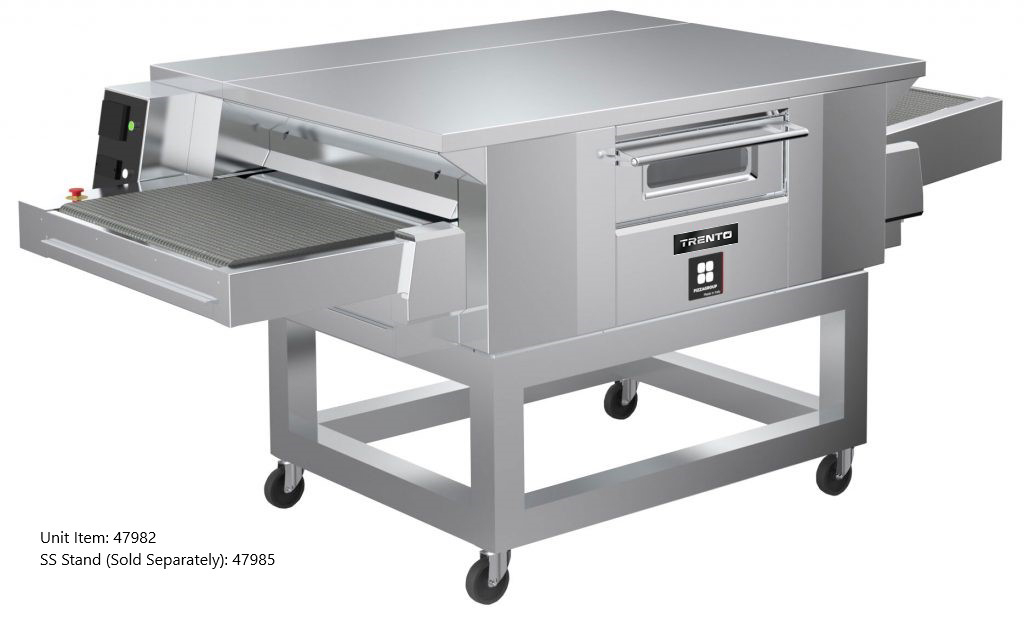

          Stand measurements (For optional stand #47576)
          STAND HEIGHT: 27.5" / 70 cm
          NET WEIGHT: 79.3 lbs / 36 kg
          PACKAGING DIMENSIONS: 44.9" x 36.6" x 6.9"
          PACKAGING WEIGHT: 114.6 lbs / 52 kg



          Please refer spec sheet for other measurements.



          NOTE:
          1. Electrical connections must be made directly from the main control box or from the service output to the oven in advance of the installation day.
          2. The plug, cable and receptacle are not included
          3. The oven's connections must be made by an electrician on the installation day.
          4. Safety chains must connect the oven to the wall to prevent it from moving. Anchoring must be done by the customer.
          5. The length of the safety chain must prevent the flexible hoses from straightening.
          6. Safety chains are not included with the oven.
