DISCONTINUED
Limited Stock
- Maximum rack capacity of 40 racks per hour at 59°F incoming water
- Maximum rack capacity of 48 racks per hour at 140°F incoming water
- Stainless steel non-clogging wash and rinse impeller
- Automatic water fill; automatic start / stop
- 304L stainless steel for corrosion resistance
- Easily removable large capacity strainer
Spec Sheet

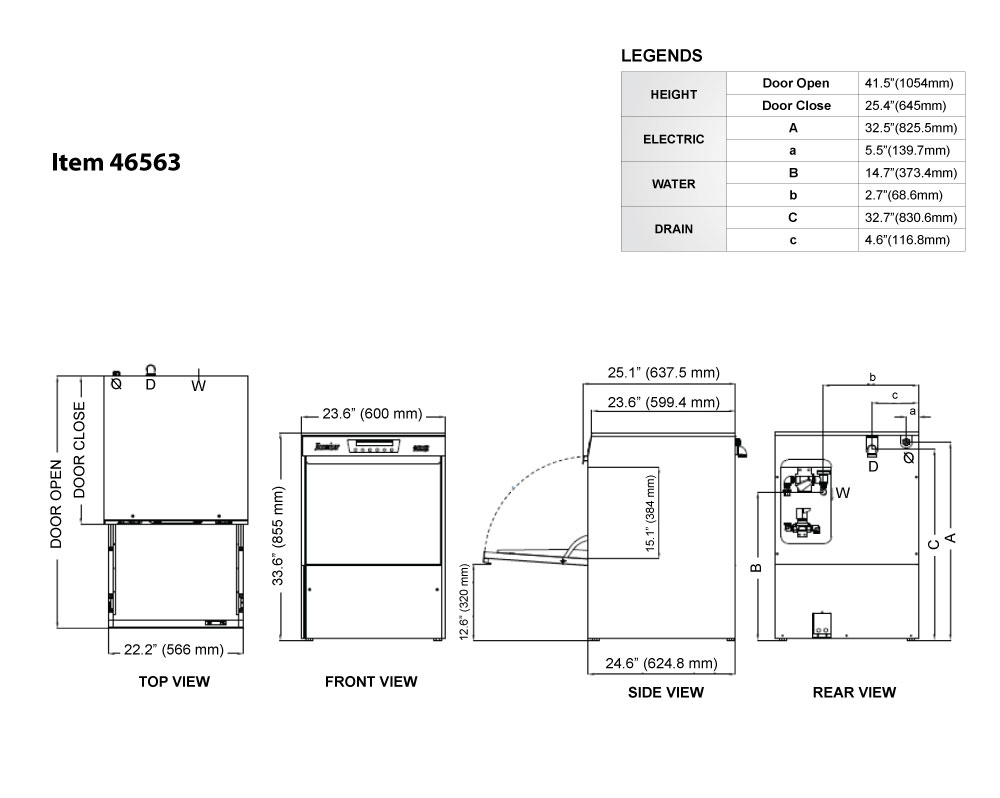

Technical Drawings
UPC CODE
690207465636
WARRANTY
1 Year Parts and Labor
CERTIFICATIONS
ETL/ ETL Sanitation
COUNTRY OF ORIGIN
KOREA
GROSS WEIGHT
231 LBS
GROSS DIMENSIONS
27.6 x 31.5 x 41 IN
TYPE OF PLUG
Field Installed required. Power cord is not included
PRODUCT STATUS
DISCONTINUED
PRODUCT OVERVIEW
FEATURES OF PROGRAMMABLE CONTROLLER
Maximizes washing efficiency and provides a clean environment
Minimum required wash and rinse temperatures (pre-heating 80 minutes)
Built-in electric heater with powerful rinse pump
Constant pressure and temperature
Pumped liquid detergent and rinse agent
Automatic pumped drain
STANDARD FEATURES
Raises incoming water 59°F (15°C) ?†’ 180°F (82°C) hot water sanitizing
Variable time cycles (30~210 seconds)
Maximum rack capacity of 48 racks per hour at 140°F incoming water
Maximum rack capacity of 40 racks per hour at 59°F incoming water
Automatic water fill; automatic start / stop
3 factory preset options (40/36/30 racks per hour, 90/100/120 seconds per cycle): 70 seconds powerful wash | 10 seconds dwell time | 10 seconds hot water rinse
Stainless steel non-clogging wash and rinse impeller
304L stainless steel for corrosion resistance
Easily removable large capacity strainer
Solid state, integrated LED display controls with status indicators
Low-noise and large output 1 HP washing pump
Rotating rinse impellers (both upper and lower) feature 5 rinse nozzles each - easily removable and interchangeable for cleaning and inspection
Door actuated start
Service diagnostics
Listed on US Patent
COMPARE OUR DISHWASHER MODELS
Maximizes washing efficiency and provides a clean environment
Minimum required wash and rinse temperatures (pre-heating 80 minutes)
Built-in electric heater with powerful rinse pump
Constant pressure and temperature
Pumped liquid detergent and rinse agent
Automatic pumped drain
STANDARD FEATURES
Raises incoming water 59°F (15°C) ?†’ 180°F (82°C) hot water sanitizing
Variable time cycles (30~210 seconds)
Maximum rack capacity of 48 racks per hour at 140°F incoming water
Maximum rack capacity of 40 racks per hour at 59°F incoming water
Automatic water fill; automatic start / stop
3 factory preset options (40/36/30 racks per hour, 90/100/120 seconds per cycle): 70 seconds powerful wash | 10 seconds dwell time | 10 seconds hot water rinse
Stainless steel non-clogging wash and rinse impeller
304L stainless steel for corrosion resistance
Easily removable large capacity strainer
Solid state, integrated LED display controls with status indicators
Low-noise and large output 1 HP washing pump
Rotating rinse impellers (both upper and lower) feature 5 rinse nozzles each - easily removable and interchangeable for cleaning and inspection
Door actuated start
Service diagnostics
Listed on US Patent
COMPARE OUR DISHWASHER MODELS
POWER: 4.75 kW
AMPS: 24
WASH PUMP POWER: 1 HP
MAX. RACK CAPACITY: 40 Racks / hr.
VARIABLE TIME CYCLE: 30 – 210 seconds
CYCLE PER SEC: 90
1 CYCLE WATER CONSUMPTION: 0.8 gal. / 3L
HOT WATER TEMPERATURE: 140°F (60°C) ?†’ 180°F (82°C)
ELECTRICAL: 220V / 60Hz / 1Ph
NET DIMENSIONS: 24.6″ x 23.6″ x 34.2″/ 625 x 599 x 869mm
NET WEIGHT: 227 lbs. / 103 kg.
AMPS: 24
WASH PUMP POWER: 1 HP
MAX. RACK CAPACITY: 40 Racks / hr.
VARIABLE TIME CYCLE: 30 – 210 seconds
CYCLE PER SEC: 90
1 CYCLE WATER CONSUMPTION: 0.8 gal. / 3L
HOT WATER TEMPERATURE: 140°F (60°C) ?†’ 180°F (82°C)
ELECTRICAL: 220V / 60Hz / 1Ph
NET DIMENSIONS: 24.6″ x 23.6″ x 34.2″/ 625 x 599 x 869mm
NET WEIGHT: 227 lbs. / 103 kg.
