DISCONTINUED
New and improved door mechanism
Door opening: 14″ / 360mm
Double skin door
Washing pump: IP44
Standard tank and boiler thermometer
Standard draining pump
Standard detergent pump
Standard rinsing thermo detector
3 washing cycles
Proof rinse feature ensures proper sanitized rinse cycle temperature
Low maintenance, heavy duty, all corrosion resistant, 304 SS
Thermal protection for wash and tank booster
Spec Sheet

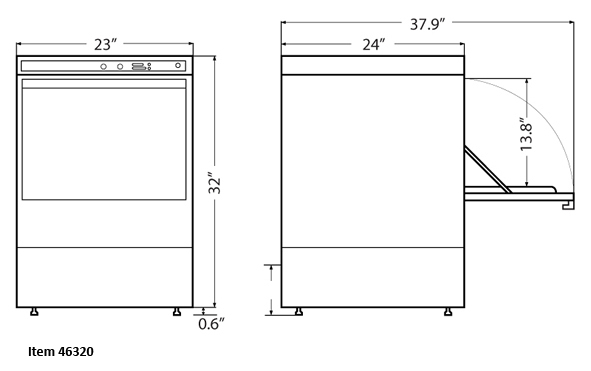

Technical Drawings
UPC CODE
690207463205
WARRANTY
1 Year Parts and Labor
CERTIFICATIONS
NSF / TUV / cETLus LISTED INTERTEK / CE
COUNTRY OF ORIGIN
GREECE
SHIPPED BY FREIGHT
YES
GROSS WEIGHT
290 LBS
GROSS DIMENSIONS
47 x 36 x 44 IN
PRODUCT STATUS
DISCONTINUED
PRODUCT OVERVIEW
Maintaining clean dishes is important for any foodservice operation business. With our Omcan dishwashers, you can assure that you can keep up with the demands for your operation. Our dishwashers come with dish racks for convenience. Our units also provide ease of use for operators.
PRODUCT COMPARISON
PRODUCT COMPARISON
BASKET SIZE: 20″ x 20″
WASH PUMP: 0.75 HP
CAPACITY: Booster tank: 6L ; Wash tank: 35L
HEATING ELEMENT: Booster tank: 3 kW; Wash tank: 2.8 kW
POWER: 3.6 kW
ELECTRICAL: 208-240V/ 60Hz / 1Ph
AMP: 16A
HOT WATER REQUIREMENTS: .5″ GPC (2LPC) 50°C / 120°F
WATER LINE REQUIREMENTS: .75″ Hose supplied
WATER PRESSURE REQUIREMENTS: 30-72 PSI
DRAIN LINE :1.1″ Hose supplied
DOOR CLEARANCE: 14″
NET DIMENSIONS: 23″ x 24″ x 32″/ 570 x 600 x 830 mm
GROSS DIMENSIONS: 24″ x 27″ x 39″/ 580 x 680 x 1000 mm
NET WEIGHT: 121 lbs/ 55 kg
GROSS WEIGHT: 132 lbs/ 60 kg
WASH PUMP: 0.75 HP
CAPACITY: Booster tank: 6L ; Wash tank: 35L
HEATING ELEMENT: Booster tank: 3 kW; Wash tank: 2.8 kW
POWER: 3.6 kW
ELECTRICAL: 208-240V/ 60Hz / 1Ph
AMP: 16A
HOT WATER REQUIREMENTS: .5″ GPC (2LPC) 50°C / 120°F
WATER LINE REQUIREMENTS: .75″ Hose supplied
WATER PRESSURE REQUIREMENTS: 30-72 PSI
DRAIN LINE :1.1″ Hose supplied
DOOR CLEARANCE: 14″
NET DIMENSIONS: 23″ x 24″ x 32″/ 570 x 600 x 830 mm
GROSS DIMENSIONS: 24″ x 27″ x 39″/ 580 x 680 x 1000 mm
NET WEIGHT: 121 lbs/ 55 kg
GROSS WEIGHT: 132 lbs/ 60 kg
Have a Question About This Product?
Customer Question and Answer
what kind of rinse aid and detergent it requires? Any recommendation of type? Specific mineral content?
We do not specify any brand but it has to be liquid detergent and rinse aid. Thinner agent is better due to thick substance can clog the lines easier.
