Technical Specifications

ITEM: 46797
BASKET SIZE: 20" x 20"/ 500 x 500 mm
ELECTRICAL: 208-240V / 60Hz / 1Ph
AMP: 44A
WASH PUMP: 1.5 HP
PLUG AND WIRE (not included): Requires a certified electrician to install unit
FLOW PRESSURE: 20 psi ± 5
WATER CONSUMPTION / RACK: 0.7 gal (2nd program)
WATER PRESSURE REQUIREMENTS: 30-72 PSI
WATER CONSUMPTION / HOUR: 13.2 gph
WATER INLET CONNECTION: 3/4"
DRAINING CONNECTION: 1.2"
CAPACITY: Booster tank: 7.4L, Wash tank: 68L
HEATING ELEMENT: Booster tank: 7.5 kW, Wash tank: 6 kW
RACK / HOUR (1ST PROGRAM): 28
RACK / HOUR (2ND PROGRAM): 19
RACK / HOUR (3RD PROGRAM): 14
WASH CYCLE 1: 103 SEC
WASH CYCLE 2: 163 SEC
WASH CYCLE 3: 223 SEC
RINSE CYCLE: 16 SEC
WASHING TEMPERATURE: 72 °C / 161 °F
RINSING TEMPERATURE: 72 °C / 161 °F
MIN-MAX SET POINT TEMPERATURE: 30 °C / 90 °F
DOOR CLEARANCE: 16" / 400 mm
USEFUL DOOR OPENING: 15.5" / 395 mm

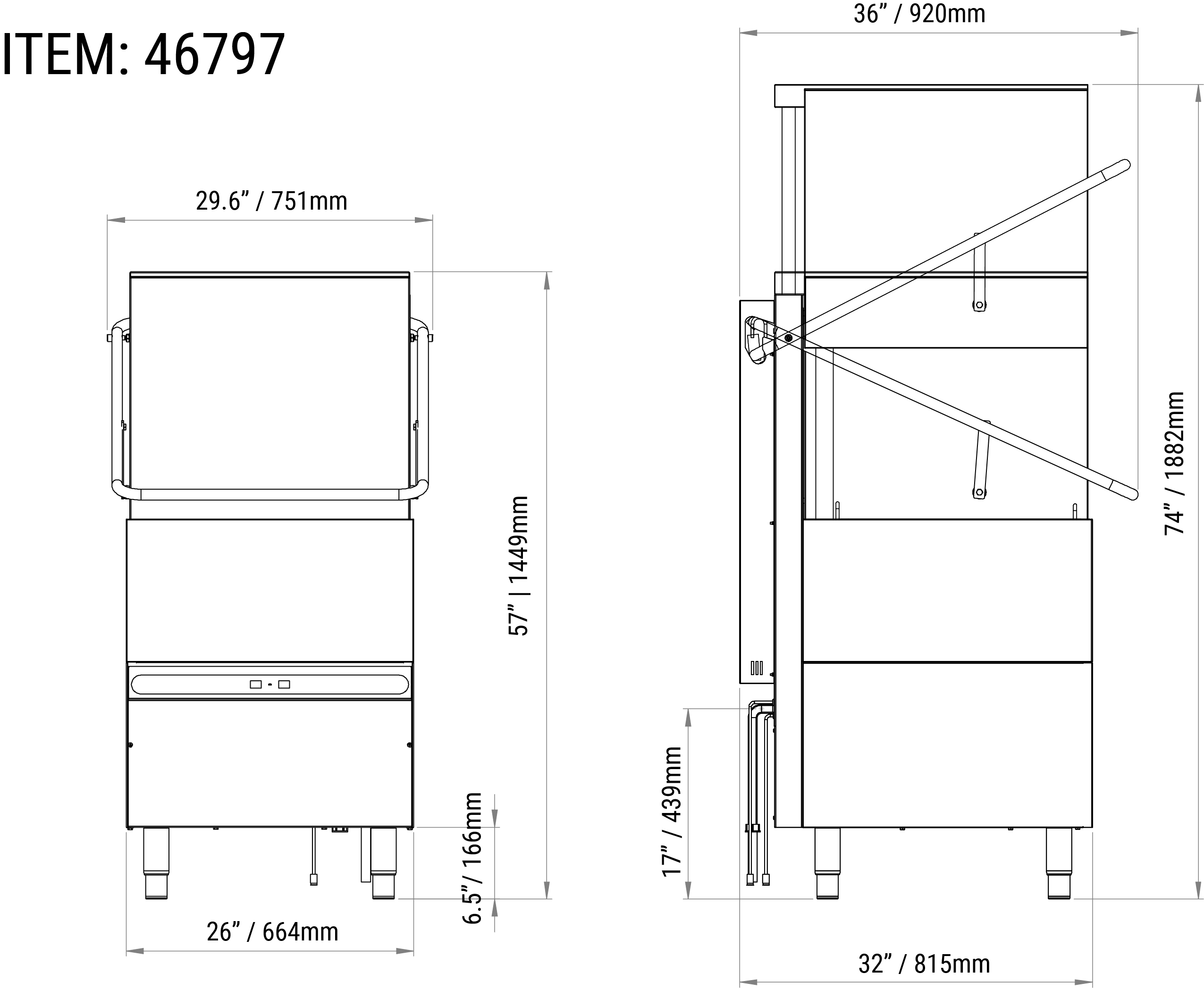

NET DIMENSIONS: 30" x 36" x 57" / 751 x 920 x 1449 mm (74" / 1882 mm open)
GROSS DIMENSIONS: 30" x 36" x 57" / 751 x 920 x 1449 mm (74" / 1882 mm open)
GROSS WEIGHT: 284 lbs/ 129 kg
