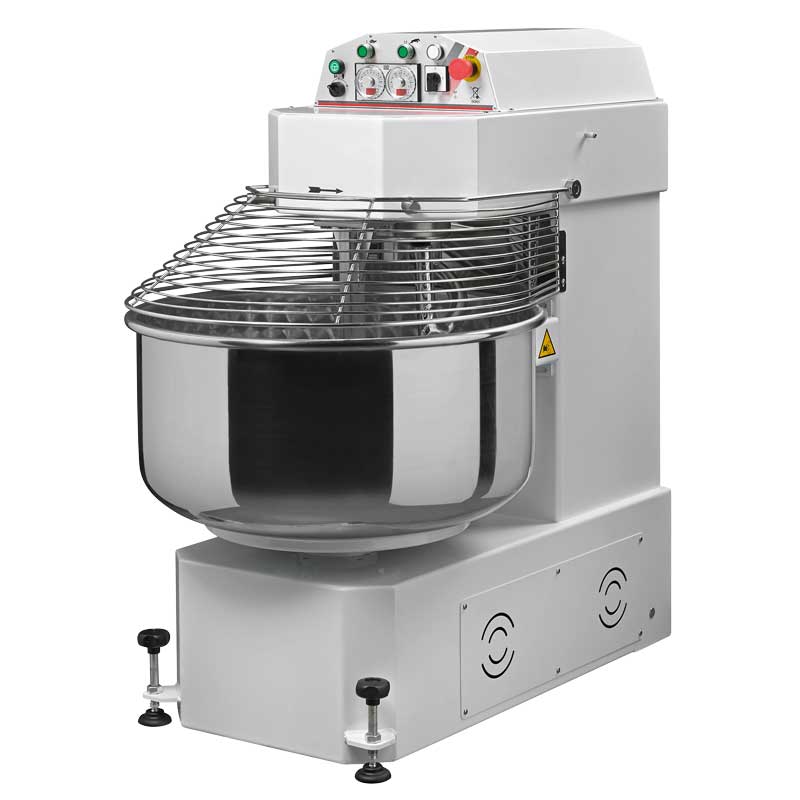

          Heavy-duty Spiral Dough Mixer with 220 lb. capacity, 2 speed – 208 V, 2.8/6.4 HP, 3 Ph

          ITEM #: 13161

          MODEL: MX-IT-0091

          DISCONTINUED

          Product Highlights

          Replaced with 49123

          • Gross Weight1050
          • Gross Dimensions48 x 31 x 52
          • UPC Code690207131616
          • Price LabelPC
          • Type of PlugL15-20 P
          • Country of OriginITALY
          • CertificationCE, cQPSus
          • Warranty1 Year Parts and Labor

          Product Overview

          Model MX-IT-0091 is a heavy-duty spiral machine with fixed basins made of stainless steel and include a rear basin guard. This model is equipped with two kneading speeds, two timers to program the working cycle and contain two fixed wheels and adjustable feet for easy positioning. Larger capacity models are available upon request.

          Heavy-duty Spiral Dough Mixer with 220 lb. capacity, 2 speed – 208 V, 2.8/6.4 HP, 3 Ph

          ITEM #: 13161

          MODEL: MX-IT-0091

          Product Highlights

          Replaced with 49123

          Product Overview

          Model MX-IT-0091 is a heavy-duty spiral machine with fixed basins made of stainless steel and include a rear basin guard. This model is equipped with two kneading speeds, two timers to program the working cycle and contain two fixed wheels and adjustable feet for easy positioning. Larger capacity models are available upon request.
          • Gross Weight1050
          • Gross Dimensions48 x 31 x 52
          • UPC Code690207131616
          • Price LabelPC
          • Type of PlugL15-20 P
          • Country of OriginITALY
          • CertificationCE, cQPSus
          • Warranty1 Year Parts and Labor

          Technical Specifications

          HP: Spiral - 2.8/ 6.4 HP; Bowl - 0.75 HP
          BOWL RPM: 14
          SPIRAL RPM: 117 - 1st speed; 234 - 2nd speed
          BOWL CAPACITY: 220 lbs.
          AMPS: Spiral - 10.4/ 18; Bowl - 19.4
          WATTAGE: Spiral - 3000 / 5200; Bowl - 5600
          ELECTRICAL: 208V/60Hz/3
          DIMENSIONS: 46” x 28.5” x 50”/1168 x 724 x 1270 mm
          WEIGHT: 1034 lbs. 469 kg
