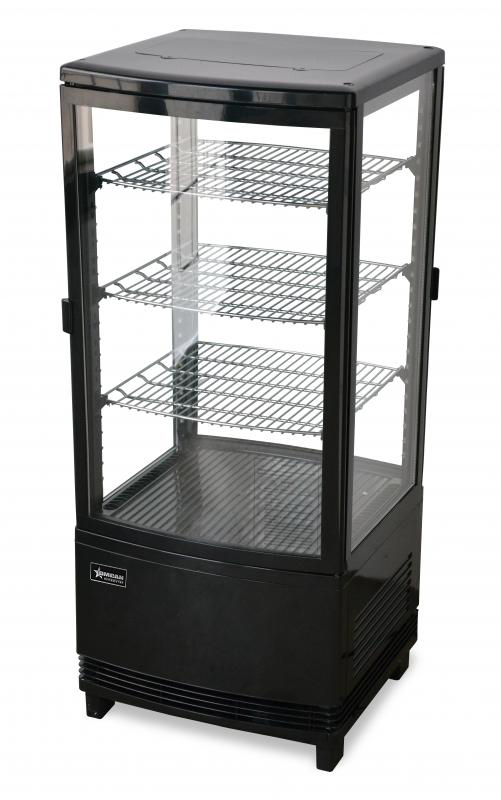

17″ Countertop Pass-Through Refrigerated Display Case with 86 L (3.0 cu.ft.) Capacity – Front and Back Glass Door
Product Highlights
Internal LED lighting
Temperature controls
Adjustable shelf positions
Two door
3 Shelves
- Gross Weight86 lbs
- Gross Dimensions19” x 19” x 40”
- UPC Code690207258276
- Price LabelPC
- Type of PlugTYPE B
- Country of OriginCHINA
- CertificationcETLus, ETL Sanitation
- Warranty2 Year Parts and Labor; 5 Year Compressor Warranty
Product Overview
Ideal for restaurants, cafes, and bakeries, this 17-inch countertop refrigerated display features crystal clear glass on all sides for maximum product visibility.
It’s spacious interior allows you to store and showcase a wide variety of items- perfect for busy stores. This clear, all-around view highlights your products and encourages quick purchase decisions by making it easy for customers to see what’s available at a glance.
17″ Countertop Pass-Through Refrigerated Display Case with 86 L (3.0 cu.ft.) Capacity – Front and Back Glass Door
Product Highlights
Internal LED lighting
Temperature controls
Adjustable shelf positions
Two door
3 Shelves
Product Overview
Ideal for restaurants, cafes, and bakeries, this 17-inch countertop refrigerated display features crystal clear glass on all sides for maximum product visibility.
It’s spacious interior allows you to store and showcase a wide variety of items- perfect for busy stores. This clear, all-around view highlights your products and encourages quick purchase decisions by making it easy for customers to see what’s available at a glance.
- Gross Weight86 lbs
- Gross Dimensions19” x 19” x 40”
- UPC Code690207258276
- Price LabelPC
- Type of PlugTYPE B
- Country of OriginCHINA
- CertificationcETLus, ETL Sanitation
- Warranty2 Year Parts and Labor; 5 Year Compressor Warranty
Technical Specifications
CAPACITY: | 86 L / 3.0 cu. ft. |
POWER: | 190 W |
ELECTRICAL: | 110V / 60Hz / 1Ph |
LAMP POWER (W): | 10 W |
TEMPERATURE RANGE: | 0 - 12°C / 32 - 53.6°F |
REFRIGERANT: | R290 |
INJECTION: | 40g |
TYPE OF CLIMATE: | N |
CURRENT (Amps): | 1.7 A |
PLUG TYPE: | Type B |
NUMBER OF SHELVES: | 3 Adjustable Shelves |
NUMBER OF DOORS: | 2 Doors |
SHELF DIMENSIONS: | 14" x 13.8"/ 357 x 352 mm |
INTERIOR DIMENSIONS (WDH): | 15.5” x 15” x 24”/ 396 x 382 x 612 mm |

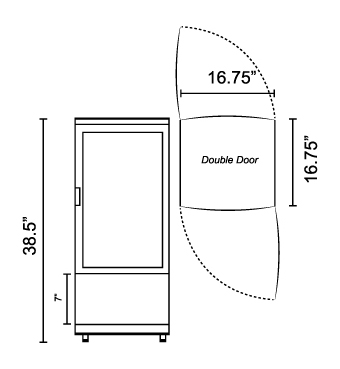

NET DIMENSIONS (WDH): | 17” x 16.7” x 38.6”/ 429 x 425 x 980 mm |
NET WEIGHT: | 80 lbs/ 36 kgs |
GROSS DIMENSIONS (WDH): | 19” x 19” x 40”/482 x 482 x 1041 mm |
GROSS WEIGHT: | 86 lbs / 39 kgs |
NOTE: This equipment is intended for use in an indoor environment where ambient temperature and humidity do not exceed 26°C / 80°F and 55% relative humidity.
