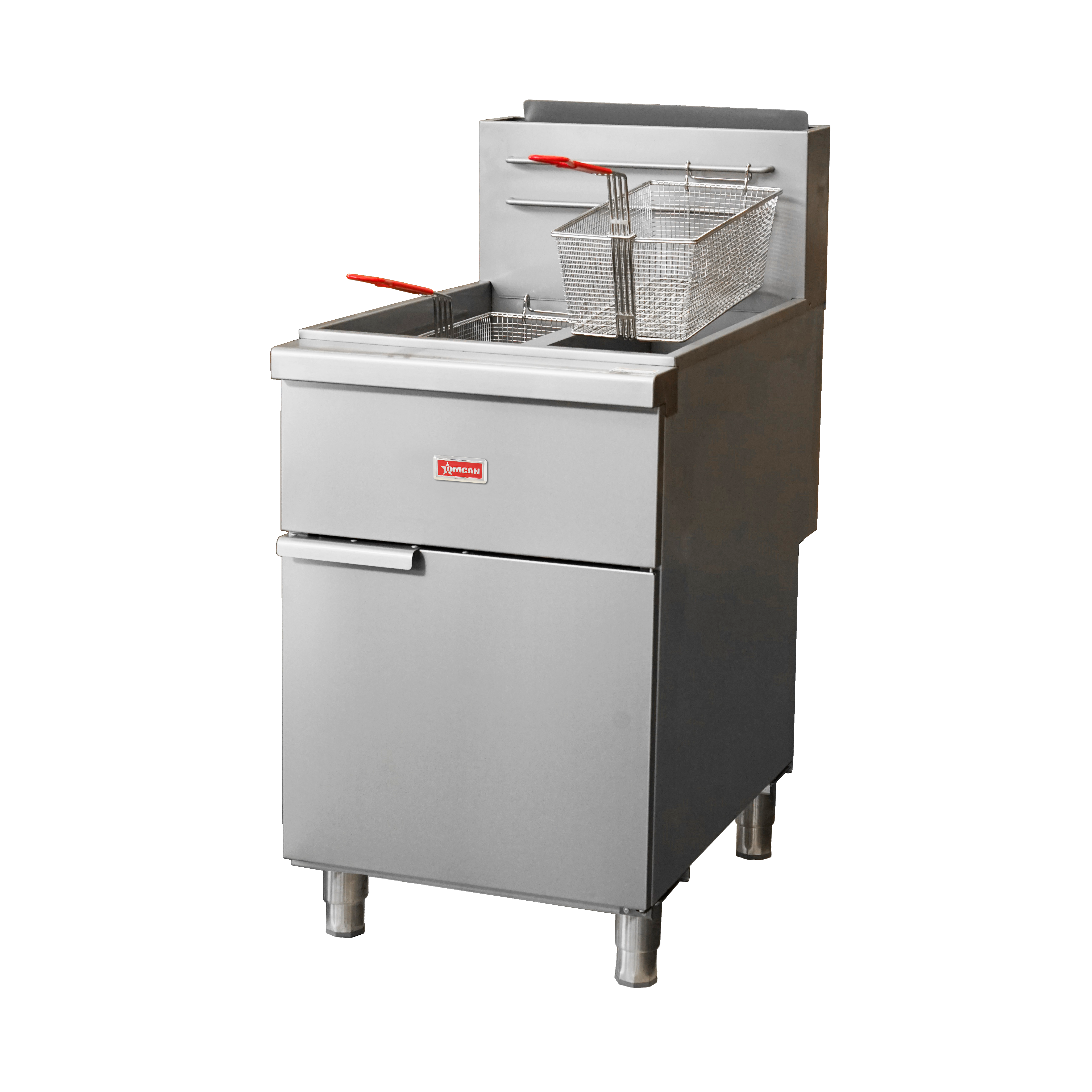

          2 x 35-40 lb. Double Tank Tube-Fired Natural Gas Floor Fryer - 120,000 BTU

          ITEM #: 48308

          MODEL: CE-CN-F4D-NG

          Product Highlights

          • Tube heat exchange design - Faster temperature recovery and superior efficiency

          • 4-Tube model with a total power of 120,000 BTU/hr

          • Temperature control range - 200°F - 400°F (93°C - 205°C)

          • High-limit temperature protection at 450°F (232°C), with automatic gas cutoff

          • Four adjustable stainless steel legs

          • Twin basket with plastic-coated handles included

          • Snap-action millivolt thermostat behind the door - no electric connection required

          • Gross Weight225 lbs.
          • Gross Dimensions22.4" x 36.2" x 33.5"
          • UPC Code690207483081
          • Price LabelPC
          • Country of OriginChina
          • CertificationcCSAus, CSA
          • Warranty1 Year Parts and Labor

          Product Overview

          Omcan Tube-Fired Natural Gas Fryer – 120,000 BTU, 4-Tube Design

          Engineered for performance and reliability, this heavy-duty gas fryer is built for busy commercial kitchens. Its tube heat exchange design delivers fast temperature recovery and superior efficiency, while a large cold zone helps capture food particles and extend oil life.

          The stainless steel fry tanks are pressure-blasted (peened) for a smooth finish and easy cleaning.

          Key Features

          • 4-tube heat exchanger delivering 120,000 BTU/h total heat power

          • Double split tanks with two independent gas control systems

          • Snap-action millivolt thermostat behind the door — no electrical connection required

          • Temperature range: 200°F – 400°F (93°C – 205°C)

          • Over-temperature protection at 450°F (232°C) — gas shuts off automatically if oil overheats

          • Four stainless steel adjustable legs

          • Twin fry baskets with plastic-coated handles

          • Suitable for high-sediment food like breaded items

          2 x 35-40 lb. Double Tank Tube-Fired Natural Gas Floor Fryer - 120,000 BTU

          ITEM #: 48308

          MODEL: CE-CN-F4D-NG

          Product Highlights

          • Tube heat exchange design - Faster temperature recovery and superior efficiency

          • 4-Tube model with a total power of 120,000 BTU/hr

          • Temperature control range - 200°F - 400°F (93°C - 205°C)

          • High-limit temperature protection at 450°F (232°C), with automatic gas cutoff

          • Four adjustable stainless steel legs

          • Twin basket with plastic-coated handles included

          • Snap-action millivolt thermostat behind the door - no electric connection required

          Product Overview

          Omcan Tube-Fired Natural Gas Fryer – 120,000 BTU, 4-Tube Design

          Engineered for performance and reliability, this heavy-duty gas fryer is built for busy commercial kitchens. Its tube heat exchange design delivers fast temperature recovery and superior efficiency, while a large cold zone helps capture food particles and extend oil life.

          The stainless steel fry tanks are pressure-blasted (peened) for a smooth finish and easy cleaning.

          Key Features

          • 4-tube heat exchanger delivering 120,000 BTU/h total heat power

          • Double split tanks with two independent gas control systems

          • Snap-action millivolt thermostat behind the door — no electrical connection required

          • Temperature range: 200°F – 400°F (93°C – 205°C)

          • Over-temperature protection at 450°F (232°C) — gas shuts off automatically if oil overheats

          • Four stainless steel adjustable legs

          • Twin fry baskets with plastic-coated handles

          • Suitable for high-sediment food like breaded items

          • Gross Weight225 lbs.
          • Gross Dimensions22.4" x 36.2" x 33.5"
          • UPC Code690207483081
          • Price LabelPC
          • Country of OriginChina
          • CertificationcCSAus, CSA
          • Warranty1 Year Parts and Labor

          Technical Specifications

          Gas Type

          Natural Gas

          Fryer Type

          Tube-Fired; Floor Model

          Number of Tubes

          4 Tubes

          Thermal Power

          120,000 BTU/hr

          Oil Capacity

          2 x 35-40 lb.

          Net Dimensions

          21" x 34.4" x 45.3"

          (534 x 873 x 1150mm)

          Net Weight

          192 lbs. (87.1 kgs.)

          Packaging Dimensions

          22.4" x 36.2" x 33.5"

          (570 x 920 x 850mm)

          Packaging Weight

          225 lbs. (102.1 kgs.)
