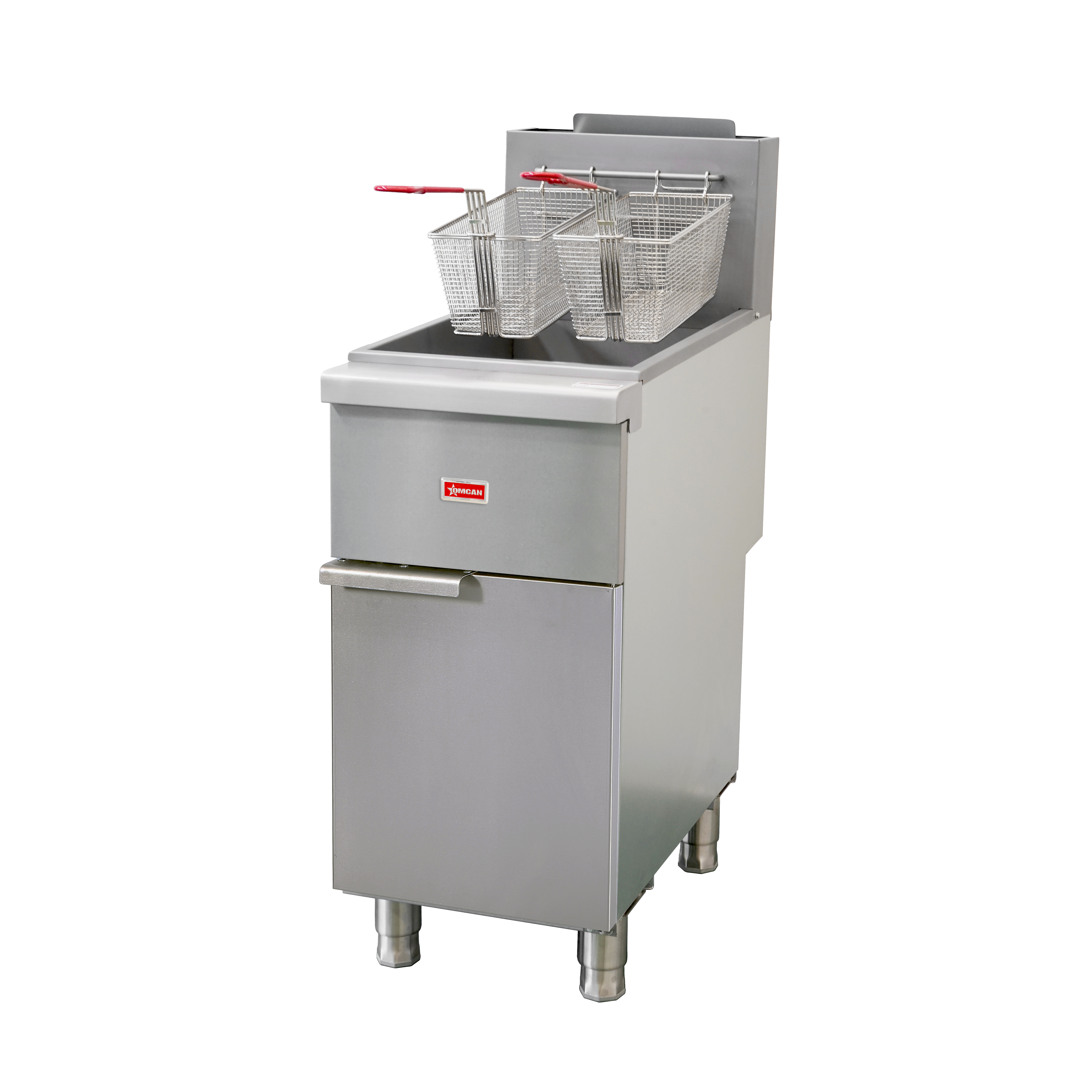

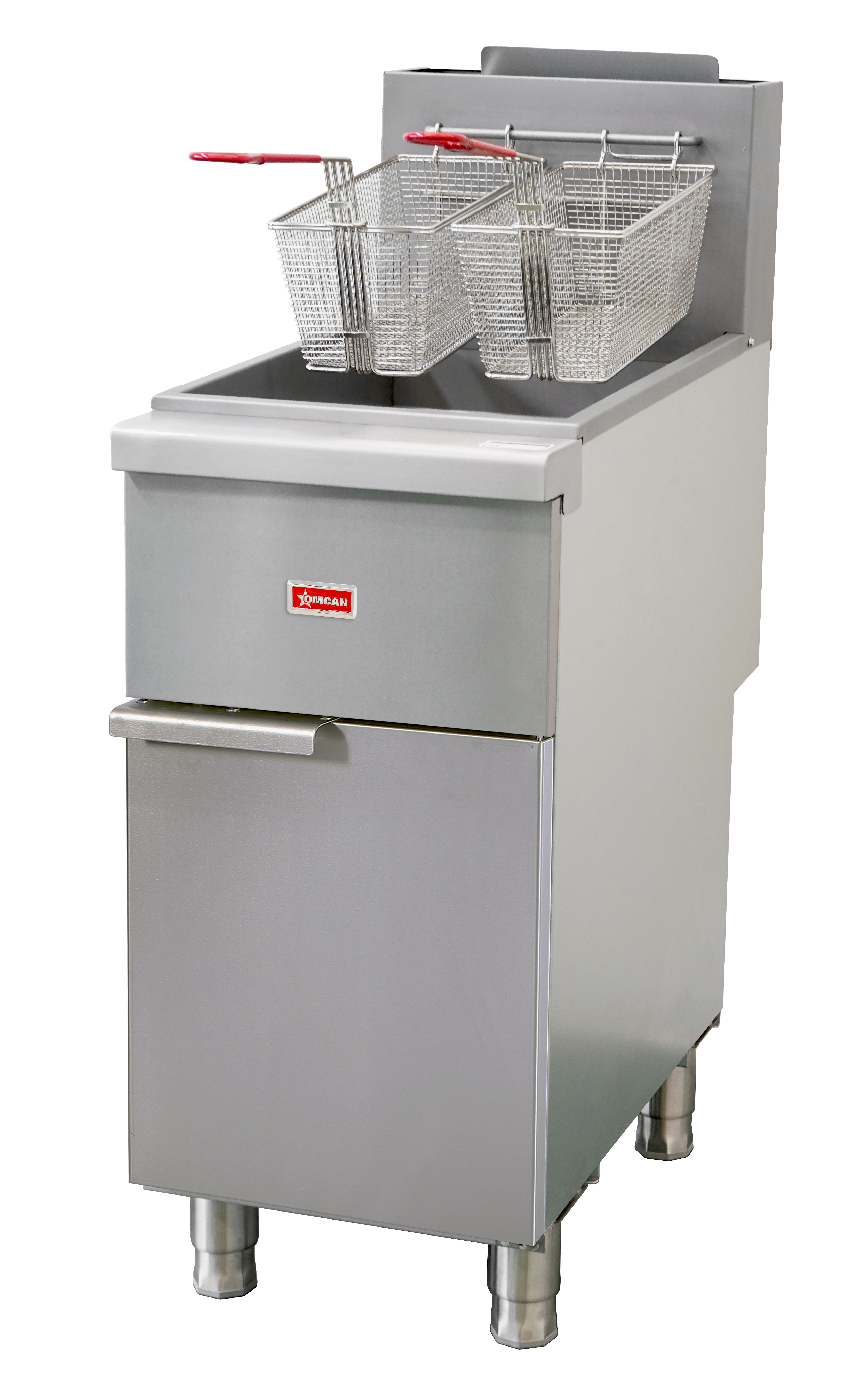

          35-40 lb. Tube-Fired Natural Gas Floor Fryer – 90,000 BTU

          ITEM #: 48305

          MODEL: CE-CN-F3-NG

          Product Highlights

          • Tube heat exchange design - Faster temperature recovery and superior efficiency

          • 3-Tube model with a total power of 90,000 BTU/hr

          • Temperature control range - 200°F - 400°F (93°C - 205°C)

          • High-limit temperature protection at 450°F (232°C), with automatic gas cutoff

          • Four adjustable stainless steel legs

          • Twin basket with plastic-coated handles included

          • Snap-action millivolt thermostat behind the door - no electric connection required

          • 1 1/4” full port drain valve for fast and complete oil drainage

          • Gross Weight145 lbs
          • Gross Dimensions16.5" x 32.3" x 33.5"
          • UPC Code690207483050
          • Price LabelPC
          • Country of OriginChina
          • CertificationcCSAus, CSA
          • Warranty1 Year Parts and Labor

          Product Overview

          Omcan Tube-Fired Natural Gas Floor Fryer – 90,000 BTU, 3-Tube Design

          Engineered for performance and reliability, this heavy-duty gas fryer is built for busy commercial kitchens. Its tube heat exchange design delivers fast temperature recovery and superior efficiency, while a large cold zone helps capture food particles and extend oil life.

          The stainless steel fry tanks are pressure-blasted (peened) for a smooth finish and easy cleaning.

          Key Features

          • 3-tube heat exchanger delivering 90,000 BTU/h total heat power

          • Snap-action millivolt thermostat behind the door — no electrical connection required

          • Temperature range: 200°F – 400°F (93°C – 205°C)

          • Over-temperature protection at 450°F (232°C) — gas shuts off automatically if oil overheats

          • Four stainless steel adjustable legs

          • Twin fry baskets with plastic-coated handles

          • Suitable for high-sediment food like breaded items

          35-40 lb. Tube-Fired Natural Gas Floor Fryer – 90,000 BTU

          ITEM #: 48305

          MODEL: CE-CN-F3-NG

          Product Highlights

          • Tube heat exchange design - Faster temperature recovery and superior efficiency

          • 3-Tube model with a total power of 90,000 BTU/hr

          • Temperature control range - 200°F - 400°F (93°C - 205°C)

          • High-limit temperature protection at 450°F (232°C), with automatic gas cutoff

          • Four adjustable stainless steel legs

          • Twin basket with plastic-coated handles included

          • Snap-action millivolt thermostat behind the door - no electric connection required

          • 1 1/4” full port drain valve for fast and complete oil drainage

          Product Overview

          Omcan Tube-Fired Natural Gas Floor Fryer – 90,000 BTU, 3-Tube Design

          Engineered for performance and reliability, this heavy-duty gas fryer is built for busy commercial kitchens. Its tube heat exchange design delivers fast temperature recovery and superior efficiency, while a large cold zone helps capture food particles and extend oil life.

          The stainless steel fry tanks are pressure-blasted (peened) for a smooth finish and easy cleaning.

          Key Features

          • 3-tube heat exchanger delivering 90,000 BTU/h total heat power

          • Snap-action millivolt thermostat behind the door — no electrical connection required

          • Temperature range: 200°F – 400°F (93°C – 205°C)

          • Over-temperature protection at 450°F (232°C) — gas shuts off automatically if oil overheats

          • Four stainless steel adjustable legs

          • Twin fry baskets with plastic-coated handles

          • Suitable for high-sediment food like breaded items

          • Gross Weight145 lbs
          • Gross Dimensions16.5" x 32.3" x 33.5"
          • UPC Code690207483050
          • Price LabelPC
          • Country of OriginChina
          • CertificationcCSAus, CSA
          • Warranty1 Year Parts and Labor

          Technical Specifications

          Gas Type

          Natural Gas

          Fryer Type

          Tube-Fired; Floor Model

          Number of Burners

          3

          Thermal Power

          90,000 BTU/hr

          Oil Capacity

          35 - 40 lb. (17-20 L)

          Net Dimensions

          15 5" x 31.3" x 45.3"
          (394 x 794 x 1150 mm)

          Net Weight

          125.7 lbs. (57 kgs.)

          Packaging Dimensions

          16.5" x 32.3" x 33.5"
          (420 x 820 x 850mm)

          Packaging Weight

          145 lbs. / 65.8 kgs.
