2 x 35-40 lb. Double Tank Tube-Fired Natural Gas Floor Fryer - 120,000 BTU

ITEM #: 48308

MODEL: CE-CN-F4D-NG

COMING SOON

Product Highlights

Tube heat exchange design - Faster temperature recovery and superior efficiency
4-Tube model with a total power of 120,000 BTU/hr
Temperature control range - 200°F - 400°F (93°C - 205°C)
High-limit temperature protection at 450°F (232°C), with automatic gas cutoff
Four adjustable stainless steel legs
Twin basket with plastic-coated handles included
Snap-action millivolt thermostat behind the door - no electric connection required
Durable 439 stainless steel tank construction
Superior corrosion resistance and longevity
Sandblasted finish of tank resists stubborn residue
Engineered for efficient and effortless cleaning

1 Year Parts Warranty

1 Year Labor Warranty

cCSAus Certified

CSA Sanitation

Product Overview

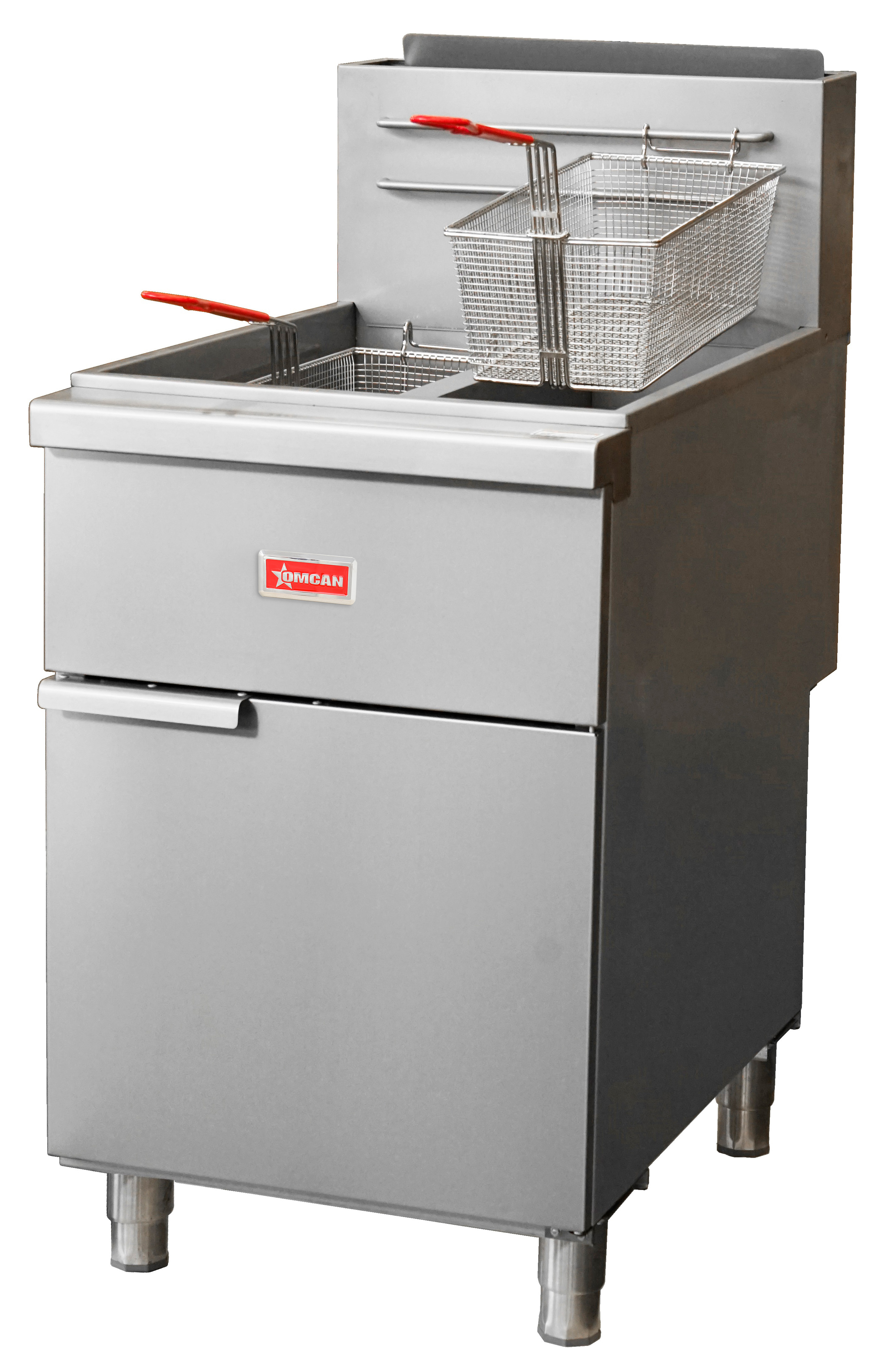

Omcan Tube-Fired Natural Gas Fryer – 120,000 BTU, 4-Tube Design

Engineered for performance and reliability, this heavy-duty gas fryer is built for busy commercial kitchens. Its tube heat exchange design delivers fast temperature recovery and superior efficiency, while a large cold zone helps capture food particles and extend oil life.

The stainless steel fry tanks are pressure-blasted (peened) for a smooth finish and easy cleaning.

Key Features

4-tube heat exchanger delivering 120,000 BTU/h total heat power
Double split tanks with two independent gas control systems
Snap-action millivolt thermostat behind the door — no electrical connection required
Temperature range: 200°F – 400°F (93°C – 205°C)
Over-temperature protection at 450°F (232°C) — gas shuts off automatically if oil overheats
Four stainless steel adjustable legs
Twin fry baskets with plastic-coated handles
Suitable for high-sediment food like breaded items

Casters are available and can be swapped in place of the standard legs using screws.

2 x 35-40 lb. Double Tank Tube-Fired Natural Gas Floor Fryer - 120,000 BTU

ITEM #: 48308

MODEL: CE-CN-F4D-NG

Available Type

Available Capacity

Product Highlights

Tube heat exchange design - Faster temperature recovery and superior efficiency
4-Tube model with a total power of 120,000 BTU/hr
Temperature control range - 200°F - 400°F (93°C - 205°C)
High-limit temperature protection at 450°F (232°C), with automatic gas cutoff
Four adjustable stainless steel legs
Twin basket with plastic-coated handles included
Snap-action millivolt thermostat behind the door - no electric connection required
Durable 439 stainless steel tank construction
Superior corrosion resistance and longevity
Sandblasted finish of tank resists stubborn residue
Engineered for efficient and effortless cleaning

1 Year Parts Warranty

1 Year Labor Warranty

cCSAus Certified

CSA Sanitation

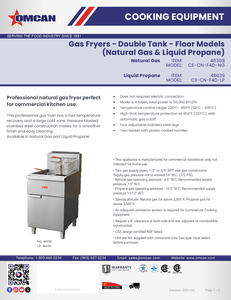

Specsheet

Instruction Manual

Parts Breakdown

Product Overview

Omcan Tube-Fired Natural Gas Fryer – 120,000 BTU, 4-Tube Design

The stainless steel fry tanks are pressure-blasted (peened) for a smooth finish and easy cleaning.

Key Features

4-tube heat exchanger delivering 120,000 BTU/h total heat power
Double split tanks with two independent gas control systems
Snap-action millivolt thermostat behind the door — no electrical connection required
Temperature range: 200°F – 400°F (93°C – 205°C)
Over-temperature protection at 450°F (232°C) — gas shuts off automatically if oil overheats
Four stainless steel adjustable legs
Twin fry baskets with plastic-coated handles
Suitable for high-sediment food like breaded items

Casters are available and can be swapped in place of the standard legs using screws.

Related Accessories

Technical Specifications

Feature	Specification
Gas Type	Natural Gas
Fryer Type	Tube-Fired; Floor Model
Number of Tubes	4 Tubes
Thermal Power	120,000 BTU/hr
Oil Capacity	2 x 37 lb
Net Dimensions	21" x 34.4" x 45.3" / 534 x 873 x 1150mm
Net Weight	192 lb / 87.1 kg
Packaging Dimensions	22.4" x 36.2" x 33.5" / 570 x 920 x 850mm
Packaging Weight	225 lb / 102.1 kg
