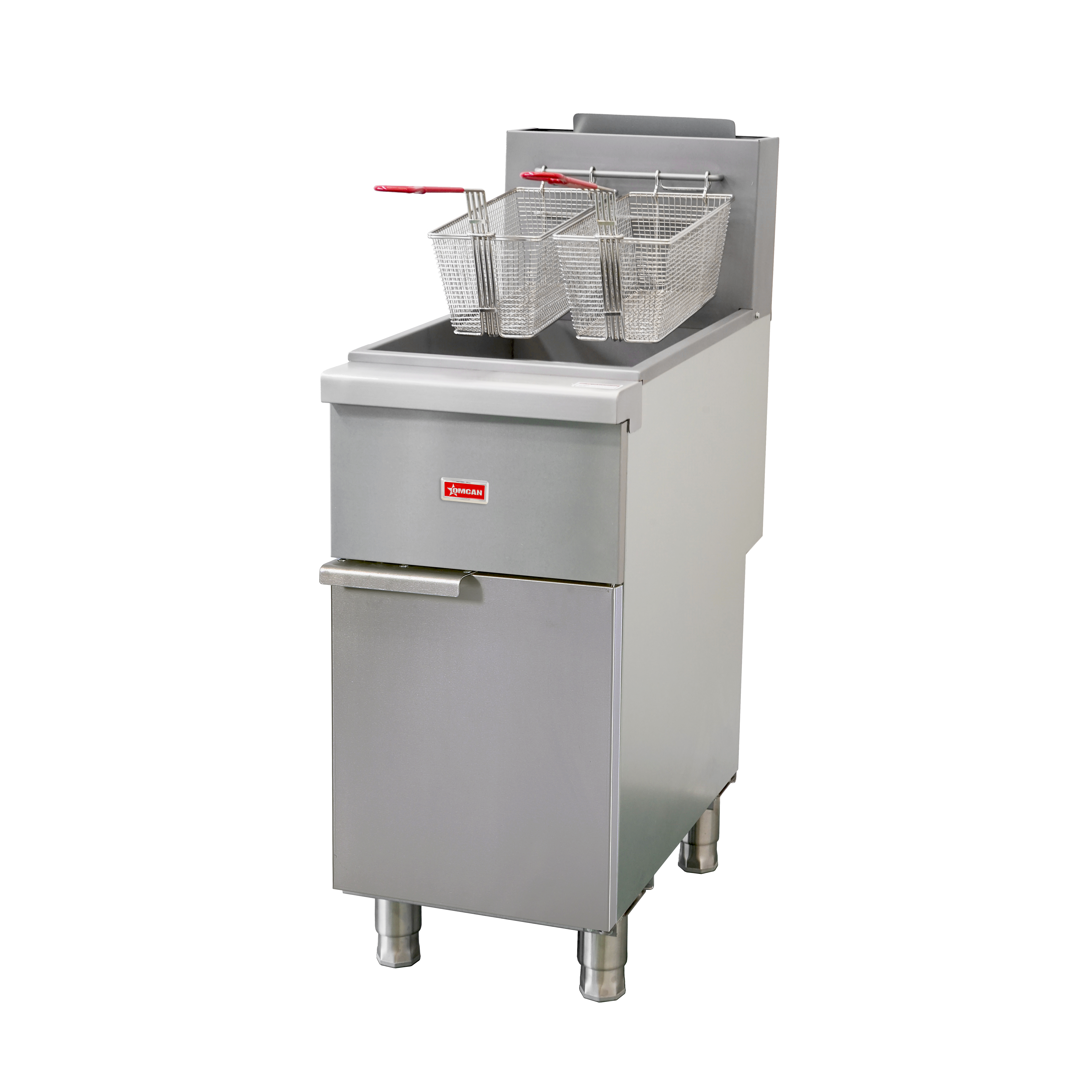

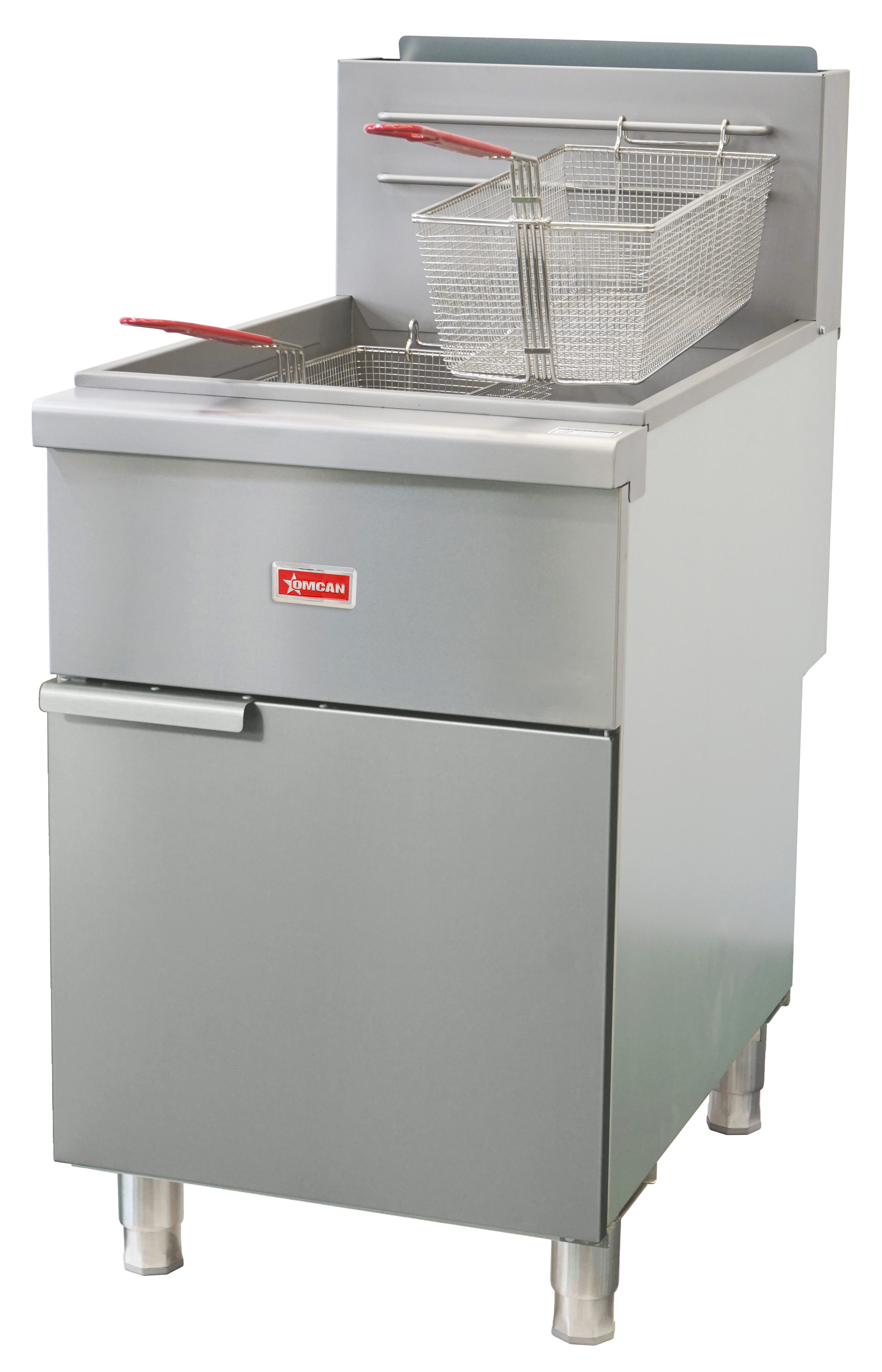

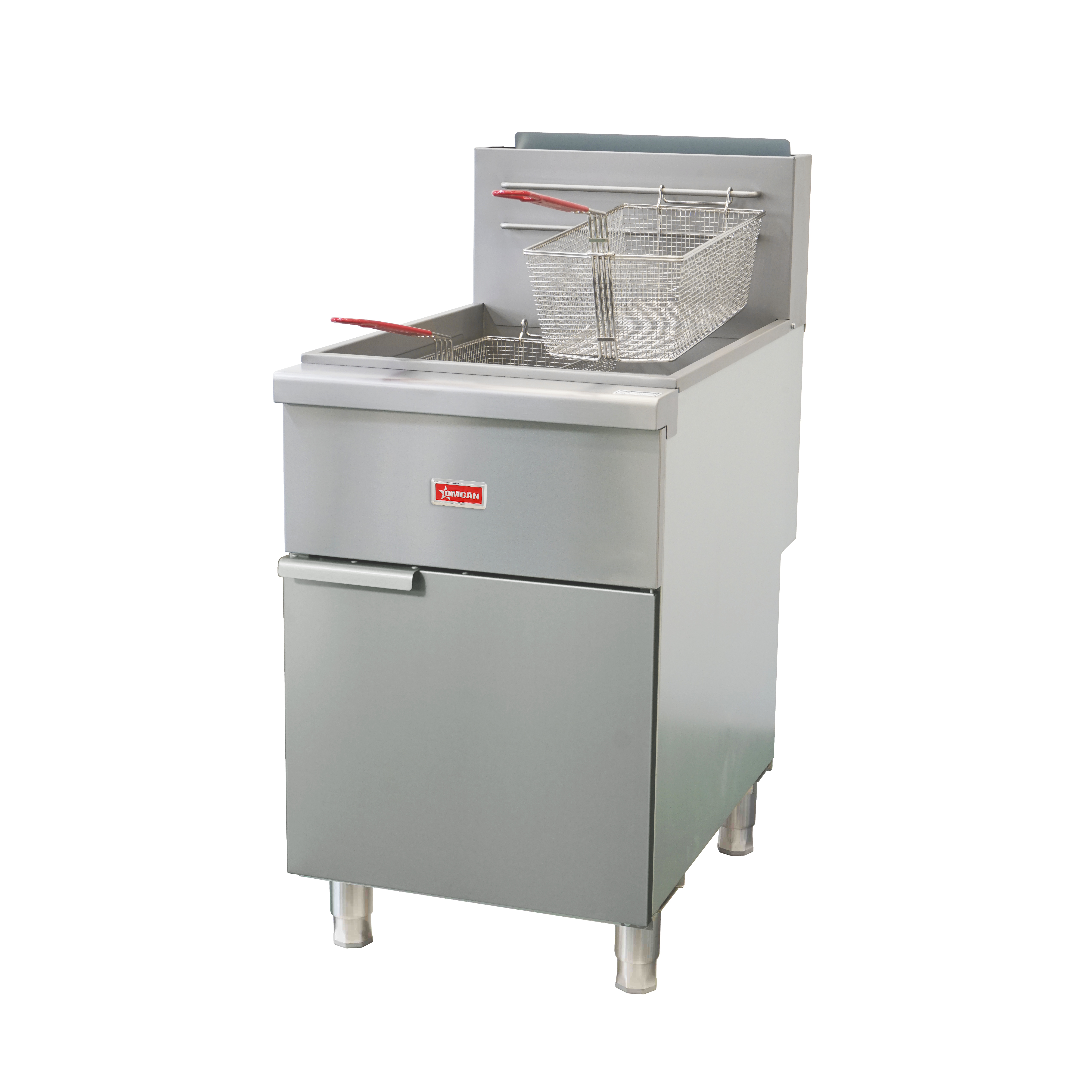

75 - 80 lb. Tube-Fired Liquid Propane Gas Floor Fryer – 150,000 BTU

Product Highlights
Tube heat exchange design - Faster temperature recovery and superior efficiency
5-Tube model with a total power of 150,000 BTU/hr
Temperature control range - 200°F - 400°F (93°C - 205°C)
High-limit temperature protection at 450°F (232°C), with automatic gas cutoff
Four adjustable stainless steel legs
Twin basket with plastic-coated handles included
Snap-action millivolt thermostat behind the door - no electric connection required
1 1/4” full port drain valve for fast and complete oil drainage
- Gross Weight204 lbs.
- Gross Dimensions22.4" x 36.2" x 33.5"
- UPC Code690207486389
- Country of OriginChina
- CertificationcCSAus, CSA
- Warranty1 Year Parts and Labor
Product Overview
Omcan Tube-Fired Liquid Propane Gas Fryer – 150,000 BTU, 5-Tube Design
Engineered for performance and reliability, this heavy-duty gas fryer is built for busy commercial kitchens. Its tube heat exchange design delivers fast temperature recovery and superior efficiency, while a large cold zone helps capture food particles and extend oil life.
The stainless steel fry tanks are pressure-blasted (peened) for a smooth finish and easy cleaning.
Key Features
5-tube heat exchanger delivering 150,000 BTU/h total heat power
Snap-action millivolt thermostat behind the door — no electrical connection required
Temperature range: 200°F – 400°F (93°C – 205°C)
Over-temperature protection at 450°F (232°C) — gas shuts off automatically if oil overheats
Four stainless steel adjustable legs
Twin fry baskets with plastic-coated handles
Suitable for high-sediment food like breaded items
75 - 80 lb. Tube-Fired Liquid Propane Gas Floor Fryer – 150,000 BTU
Product Highlights
Tube heat exchange design - Faster temperature recovery and superior efficiency
5-Tube model with a total power of 150,000 BTU/hr
Temperature control range - 200°F - 400°F (93°C - 205°C)
High-limit temperature protection at 450°F (232°C), with automatic gas cutoff
Four adjustable stainless steel legs
Twin basket with plastic-coated handles included
Snap-action millivolt thermostat behind the door - no electric connection required
1 1/4” full port drain valve for fast and complete oil drainage
Product Overview
Omcan Tube-Fired Liquid Propane Gas Fryer – 150,000 BTU, 5-Tube Design
Engineered for performance and reliability, this heavy-duty gas fryer is built for busy commercial kitchens. Its tube heat exchange design delivers fast temperature recovery and superior efficiency, while a large cold zone helps capture food particles and extend oil life.
The stainless steel fry tanks are pressure-blasted (peened) for a smooth finish and easy cleaning.
Key Features
5-tube heat exchanger delivering 150,000 BTU/h total heat power
Snap-action millivolt thermostat behind the door — no electrical connection required
Temperature range: 200°F – 400°F (93°C – 205°C)
Over-temperature protection at 450°F (232°C) — gas shuts off automatically if oil overheats
Four stainless steel adjustable legs
Twin fry baskets with plastic-coated handles
Suitable for high-sediment food like breaded items
- Gross Weight204 lbs.
- Gross Dimensions22.4" x 36.2" x 33.5"
- UPC Code690207486389
- Country of OriginChina
- CertificationcCSAus, CSA
- Warranty1 Year Parts and Labor
Technical Specifications
Gas Type | Liquid Propane Gas |
Fryer Type | Tube-Fired; Floor Model |
Number of Burners | 5 |
Thermal Power | 150,000 BTU/hr |
Oil Capacity | 75 - 80 lbs. (36 - 42 L) |
Net Dimensions | 21" x 34.4" x 45.3" |
Net Weight | 182.6 lbs. (82.8 kgs.) |
Packaging Dimensions | 22.4" x 36.2" x 33.5" |
Packaging Weight | 204 lbs. (92.5 kgs.) |
