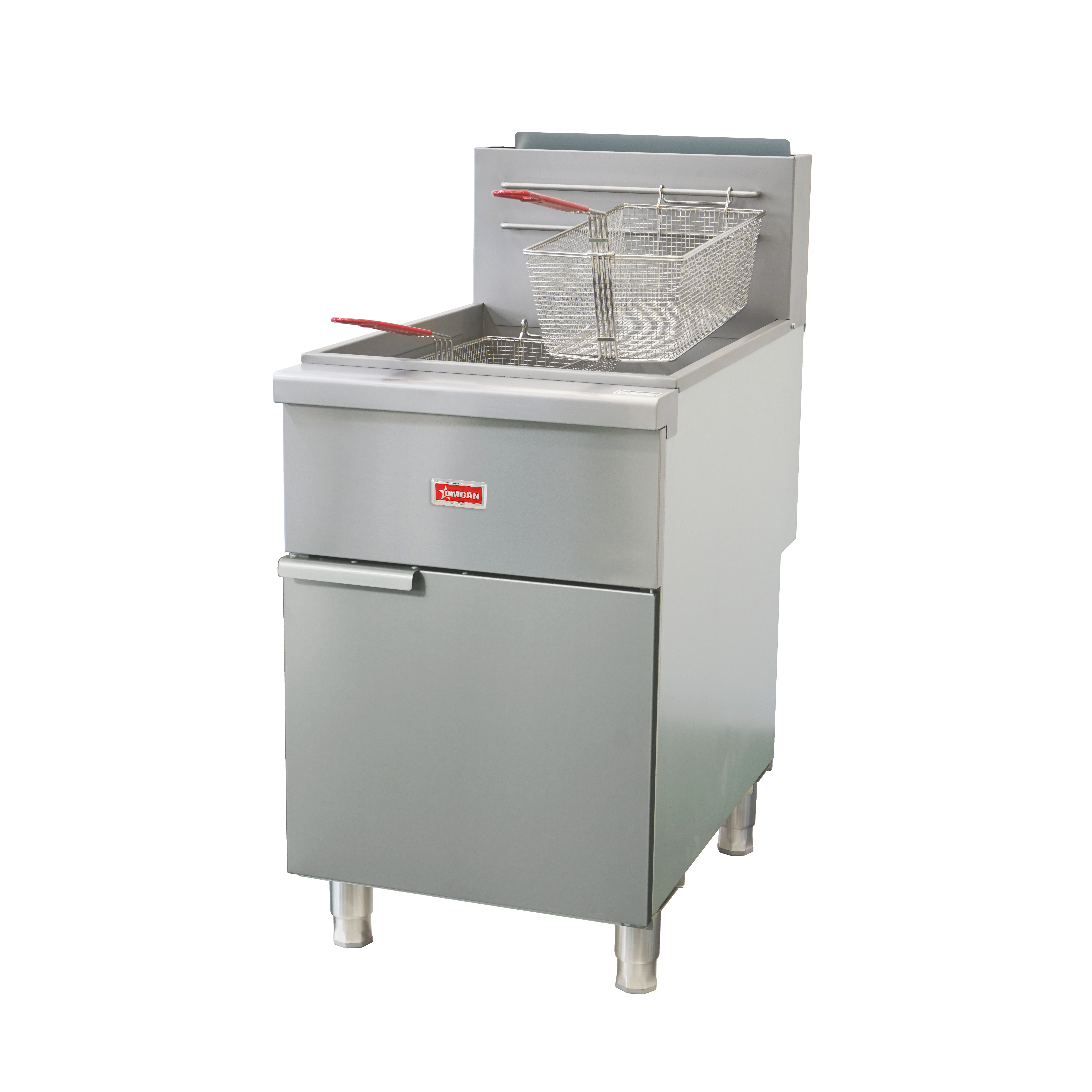

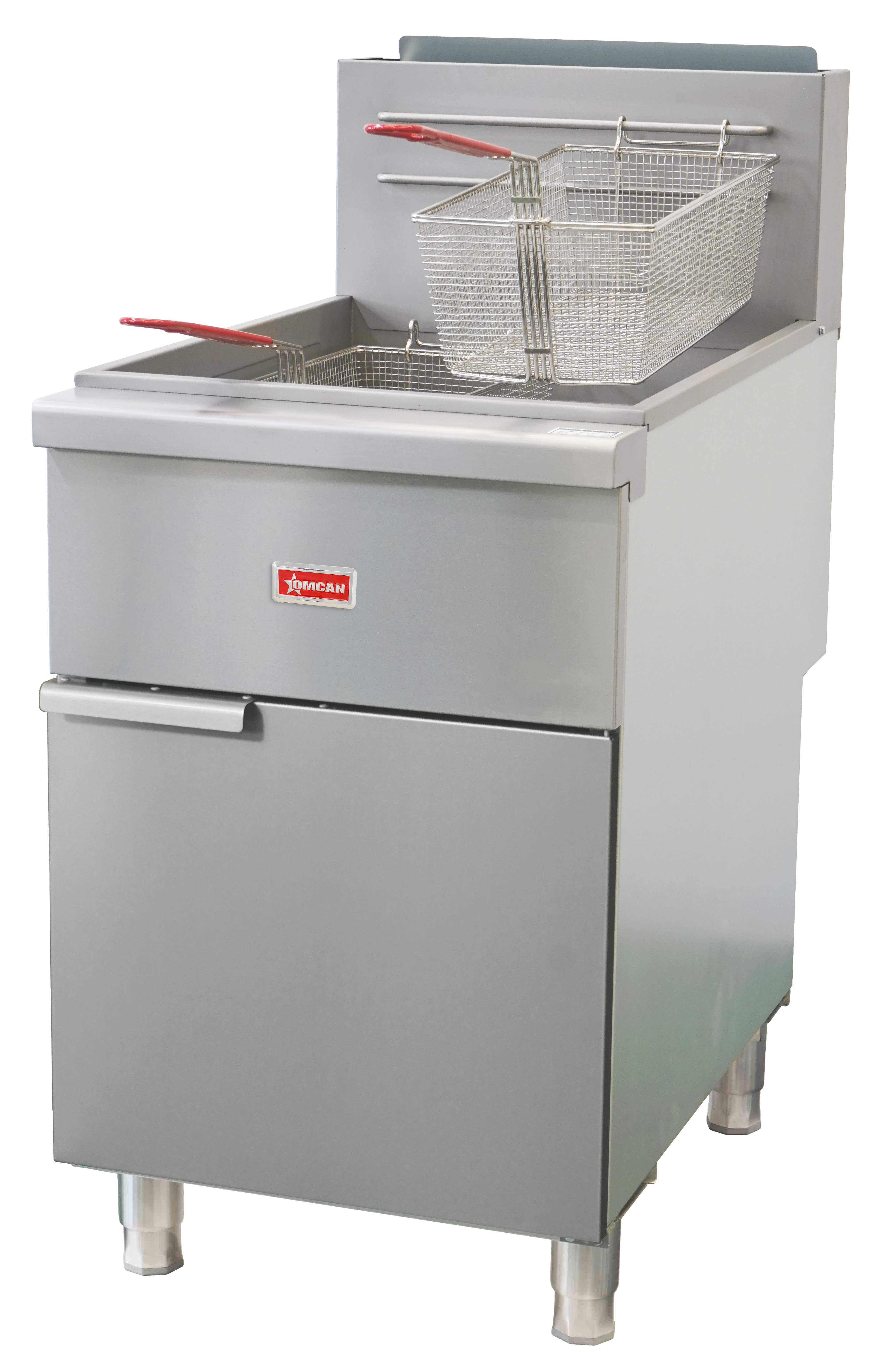

75 - 80 lb Single Tank Tube-Fired Natural Gas Floor Fryer – 150,000 BTU
Product Highlights
Tube heat exchange design - Faster temperature recovery and superior efficiency
5-Tube model with a total power of 150,000 BTU/hr
Temperature control range - 200°F - 400°F (93°C - 205°C)
High-limit temperature protection at 450°F (232°C), with automatic gas cutoff
Four adjustable stainless steel legs
Twin basket with plastic-coated handles included
Snap-action millivolt thermostat behind the door - no electric connection required
1-1/4” full port drain valve for fast and complete oil drainage
Durable 439 stainless steel tank construction
Superior corrosion resistance and longevity
Sandblasted finish of tank resists stubborn residue
Engineered for efficient and effortless cleaning
Product Overview
Omcan Tube-Fired Natural Gas Fryer – 150,000 BTU, 5-Tube Design
Engineered for performance and reliability, this heavy-duty gas fryer is built for busy commercial kitchens. Its tube heat exchange design delivers fast temperature recovery and superior efficiency, while a large cold zone helps capture food particles and extend oil life.
The stainless steel fry tanks are pressure-blasted (peened) for a smooth finish and easy cleaning.
Key Features
5-tube heat exchanger delivering 150,000 BTU/h total heat power
Snap-action millivolt thermostat behind the door — no electrical connection required
Temperature range: 200°F – 400°F (93°C – 205°C)
Over-temperature protection at 450°F (232°C) — gas shuts off automatically if oil overheats
Four stainless steel adjustable legs
Twin fry baskets with plastic-coated handles
1-1/4” full port drain valve for fast and complete oil drainage
75 - 80 lb Single Tank Tube-Fired Natural Gas Floor Fryer – 150,000 BTU
Available Type
Product Highlights
Tube heat exchange design - Faster temperature recovery and superior efficiency
5-Tube model with a total power of 150,000 BTU/hr
Temperature control range - 200°F - 400°F (93°C - 205°C)
High-limit temperature protection at 450°F (232°C), with automatic gas cutoff
Four adjustable stainless steel legs
Twin basket with plastic-coated handles included
Snap-action millivolt thermostat behind the door - no electric connection required
1-1/4” full port drain valve for fast and complete oil drainage
Durable 439 stainless steel tank construction
Superior corrosion resistance and longevity
Sandblasted finish of tank resists stubborn residue
Engineered for efficient and effortless cleaning
Product Overview
Omcan Tube-Fired Natural Gas Fryer – 150,000 BTU, 5-Tube Design
Engineered for performance and reliability, this heavy-duty gas fryer is built for busy commercial kitchens. Its tube heat exchange design delivers fast temperature recovery and superior efficiency, while a large cold zone helps capture food particles and extend oil life.
The stainless steel fry tanks are pressure-blasted (peened) for a smooth finish and easy cleaning.
Key Features
5-tube heat exchanger delivering 150,000 BTU/h total heat power
Snap-action millivolt thermostat behind the door — no electrical connection required
Temperature range: 200°F – 400°F (93°C – 205°C)
Over-temperature protection at 450°F (232°C) — gas shuts off automatically if oil overheats
Four stainless steel adjustable legs
Twin fry baskets with plastic-coated handles
1-1/4” full port drain valve for fast and complete oil drainage
Technical Specifications
Feature | Specification |
|---|---|
Gas Type | Natural Gas |
Fryer Type | Tube-Fired; Floor Model |
Number of Burners | 5 |
Thermal Power | 150,000 BTU/hr |
Oil Capacity | 75 - 80 lb |
Net Dimensions | 21" x 34.4" x 45.3" / 534 x 873 x 1150mm |
Net Weight | 182.6 lb / 82.8 kg |
Packaging Dimensions | 22.4" x 36.2" x 33.5" / 570 x 920 x 850mm |
Packaging Weight | 204 lb / 92.5 kg |
Packing & Shipping Info
- Shipping Dimensions22.4" x 36.2" x 33.5"
- Shipping Weight204 lb
- Country of OriginChina
- UPC690207483074
